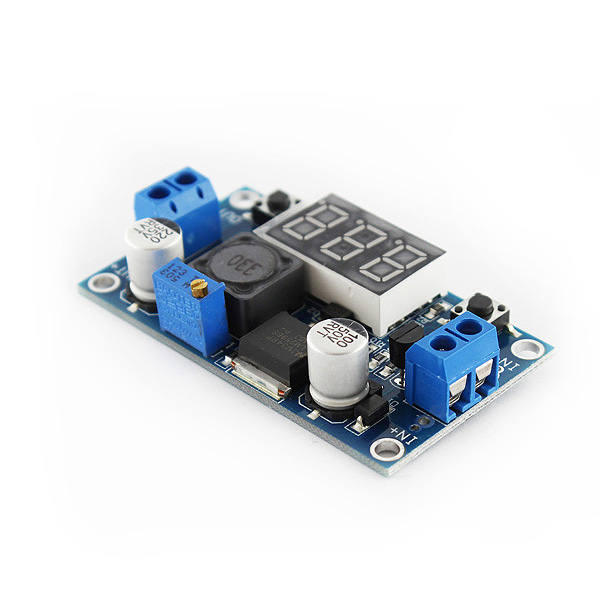

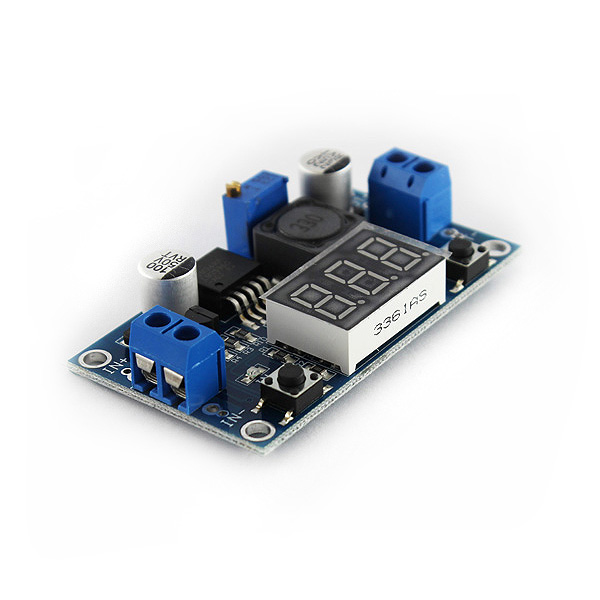

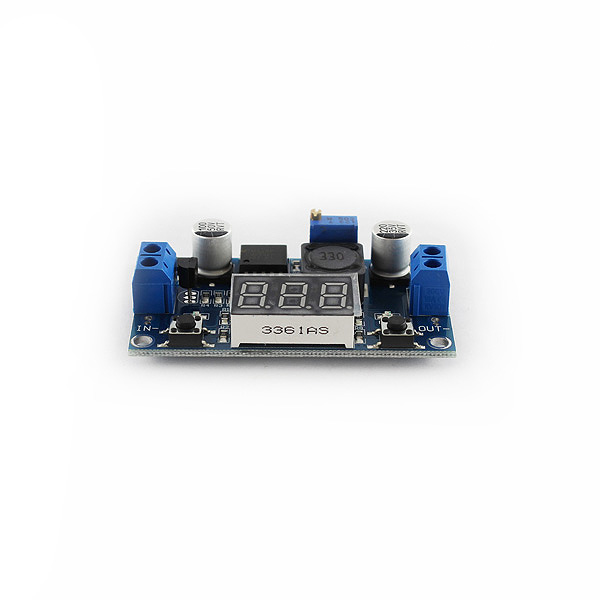

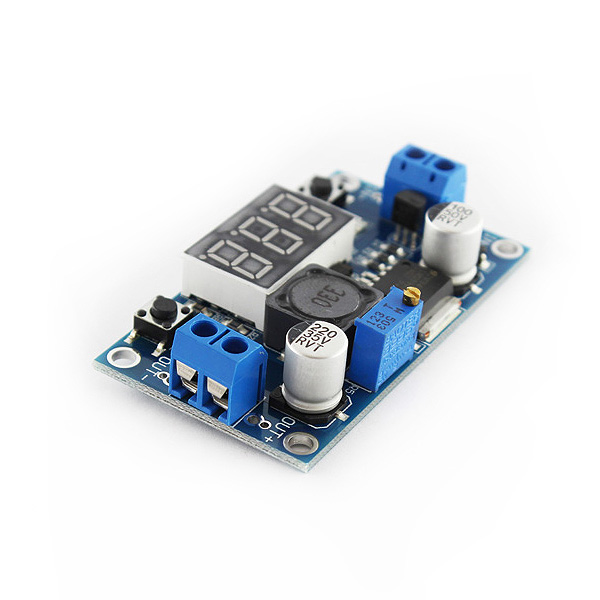

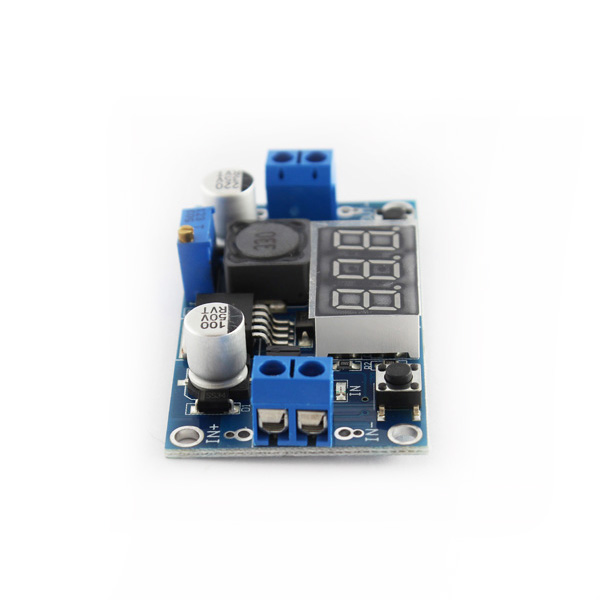

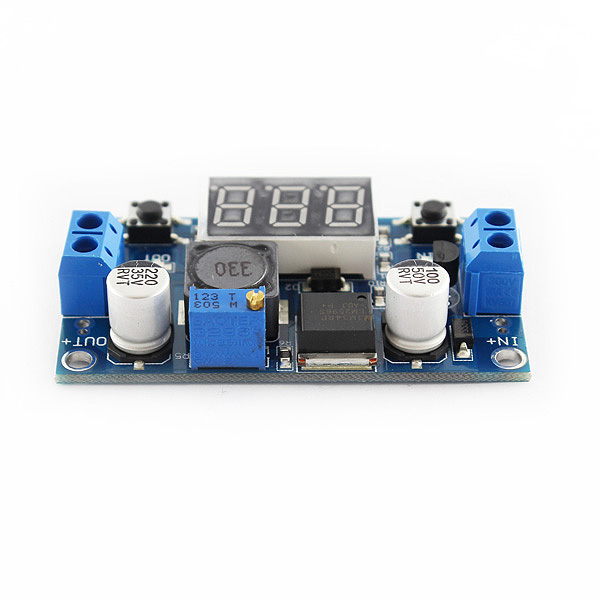

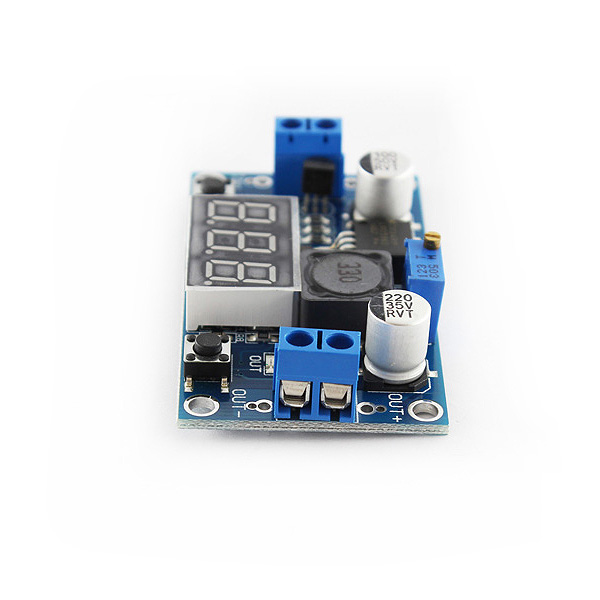

DC-DC CV Step-Down Buck Power Module 1.25V-35V - With Voltmeter

This is a DC/DC step-down voltage regulator that converts input voltage between 4V and 40V into a sm...
SKU: 101594
Availability: Out of stock
R47,20
:

Description

This is a DC/DC step-down voltage regulator that converts input voltage between 4V and 40V into a smaller voltage between 1.25V and 35V, capable of driving a 3A load with excellent line and load regulation.
In some projects, you might need different voltages (3-35V) for your devices. This module can speed up prototyping, because you can get the voltage you need (such as 3.3V, 5V and 9V) as easy as that.
Note: Input must be >1.5V higher than output.

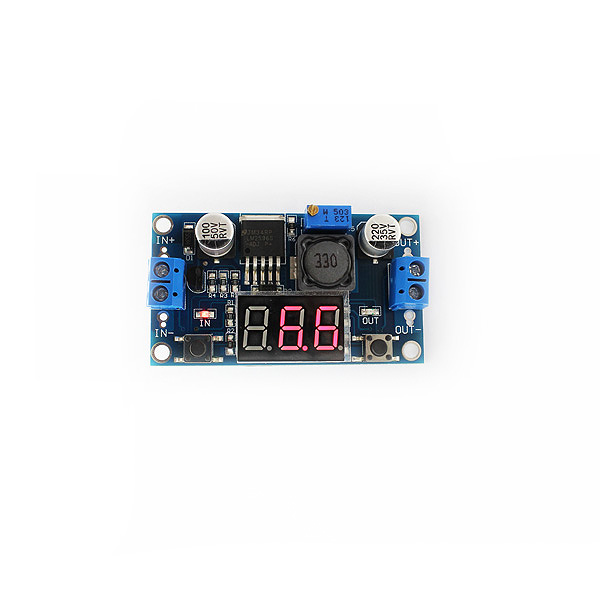

This unit comes with a built in voltage meter - for both input and output - display selectable via two on board push buttons. Left button: toggle display on/off. Right button: switch between input and output voltage.

Features

  • Input voltage range: 4-40VDC
  • Output voltage range: 1.25-37DC adjustable
  • Output current: 2A
  • Voltmeter range: 0 to 40V,error +-0.1V
  • Input reverse polarity protection
  • Built in output short protection function
  • Built in thermal shut down function

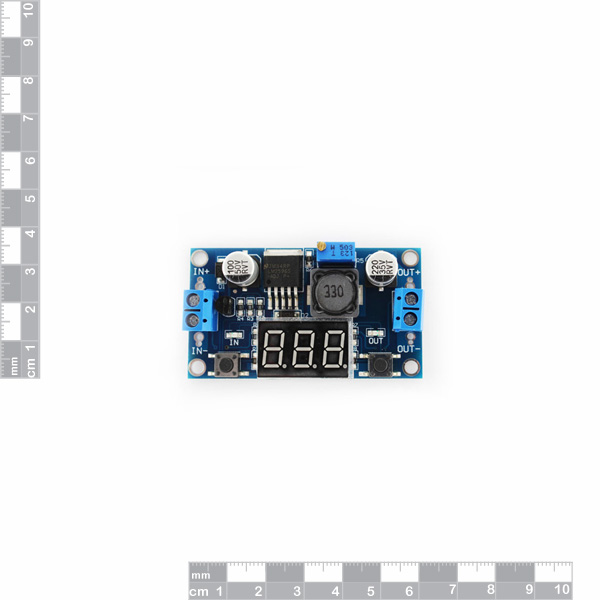

  • L x W x H=6.1 x 3.4 x1.2cm
