Nema 17 Stepper Motor

Nema 17 Stepper Motor, size 42x42mm

Description

Nema 17 Stepper Motor, size 42x42mm

Documents

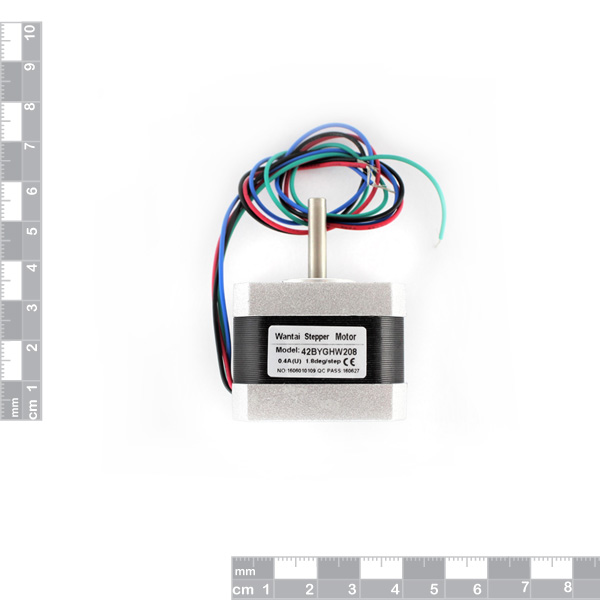

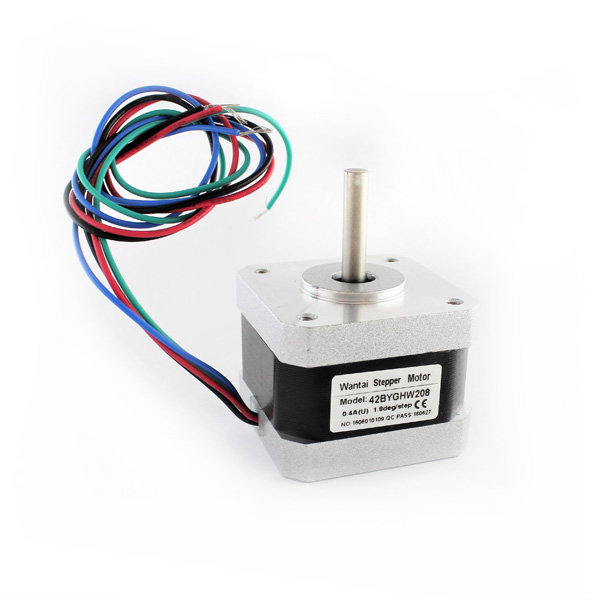

34mm 2.1kg/cm - 1.8 degree, 4 leads

Features

  • Step Angle (degrees): 1.8
  • Motor Length (mm): 34
  • Rated Voltage (V): 12
  • Rated Current (A): 0.4
  • Phase Resistance (Ohms): 30
  • Phase inductance (mH): 37
  • Holding Torque (g/cm): 2600
  • Wires: 4
  • Rotor Inertia(g/cm3): 34
  • Detent Torque (g/cm): 200
  • Weight (kg): 0.2
SKU: MOT02000679
Availability: 43 in stock
R 241,87
:

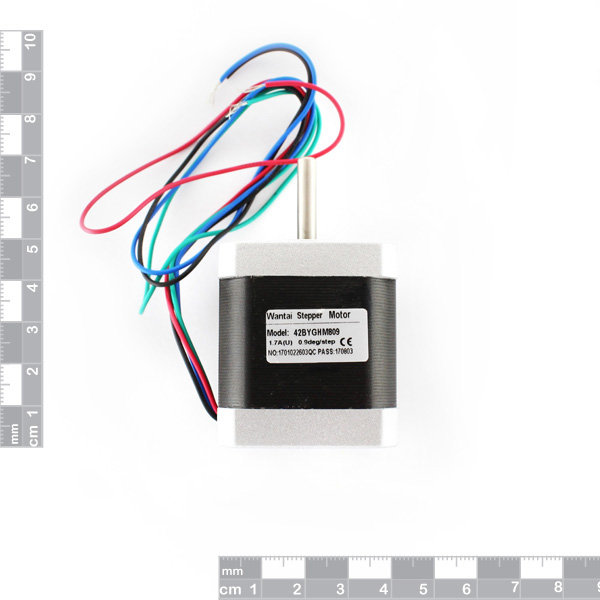

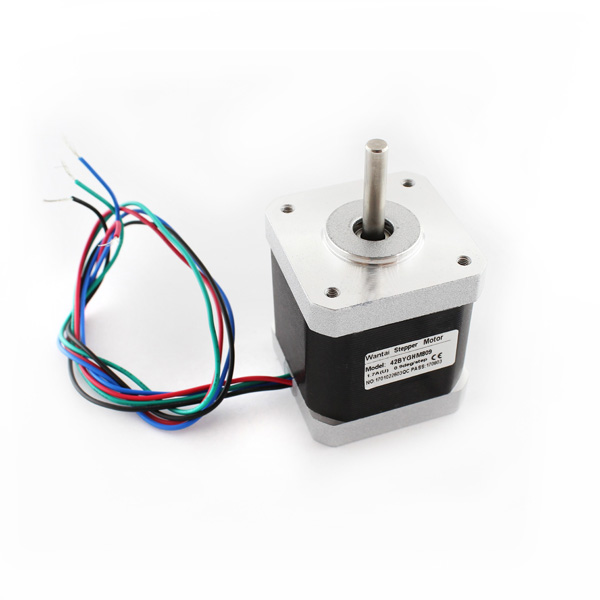

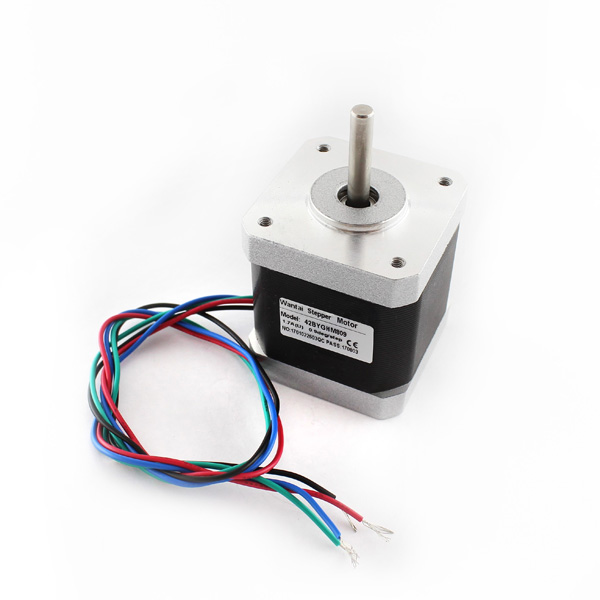

48mm 4.2kg/cm - 0.9 degree, 4 leads

Features

  • Step Angle (degrees): 0.9
  • Motor Length (mm): 48
  • Rated Voltage (V): 2.7
  • Rated Current (A): 1.68
  • Phase Resistance (Ohms): 1.6
  • Phase inductance (mH): 3.5
  • Holding Torque (g/cm): 4200
  • Wires: 4
  • Rotor Inertia(g/cm3): 68
  • Detent Torque (g/cm): 260
  • Weight (kg): 0.36
SKU: MOT02000727
Availability: 43 in stock
R 286,53
:

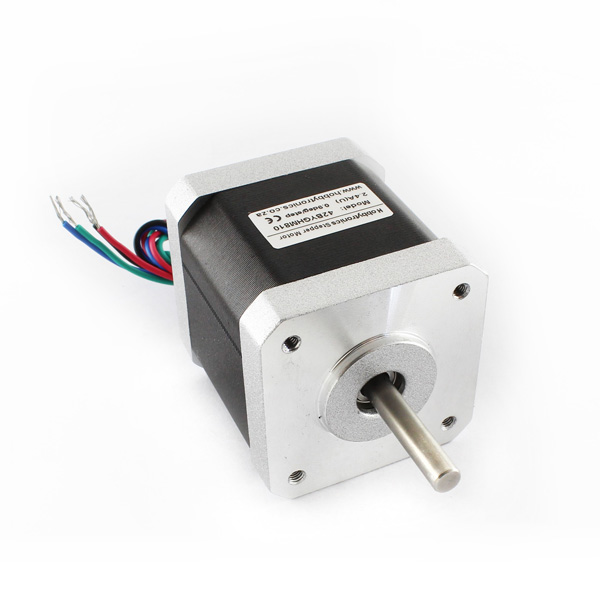

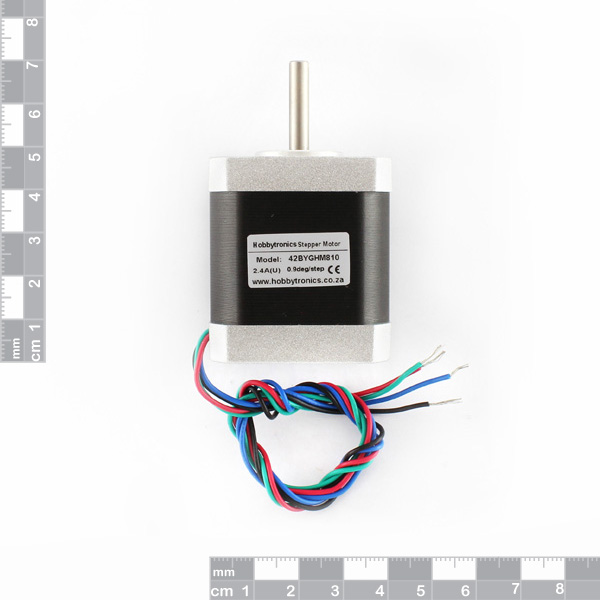

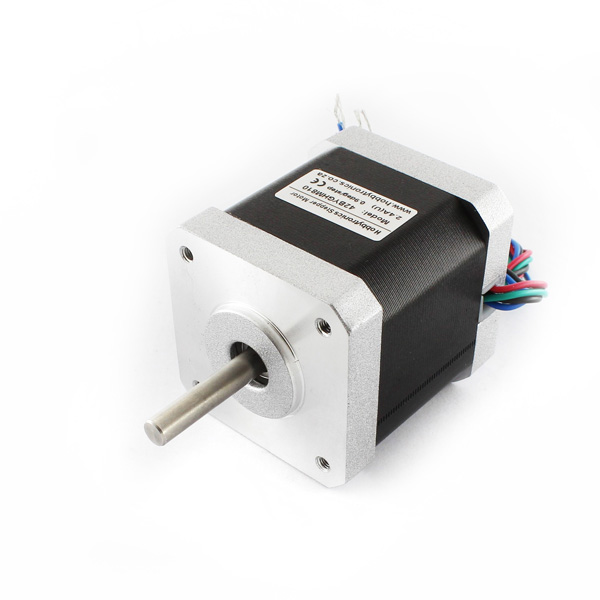

48mm 4.8kg/cm - 0.9 degree, 4 leads

Features

  • Step Angle (degrees): 0.9
  • Motor Length (mm): 48
  • Rated Voltage (V): 2.4
  • Rated Current (A): 2.4
  • Phase Resistance (Ohms): 1.0
  • Phase inductance (mH): 1.8
  • Holding Torque (g/cm): 4800
  • Wires: 4
  • Rotor Inertia(g/cm3): 68
  • Detent Torque (g/cm): 260
  • Weight (kg): 0.36
SKU: MOT02000728
Availability: 33 in stock
R 321,00
:
