Nema 23 Stepper Motor

Nema 23 Stepper Motor, size 57x57mm

Description

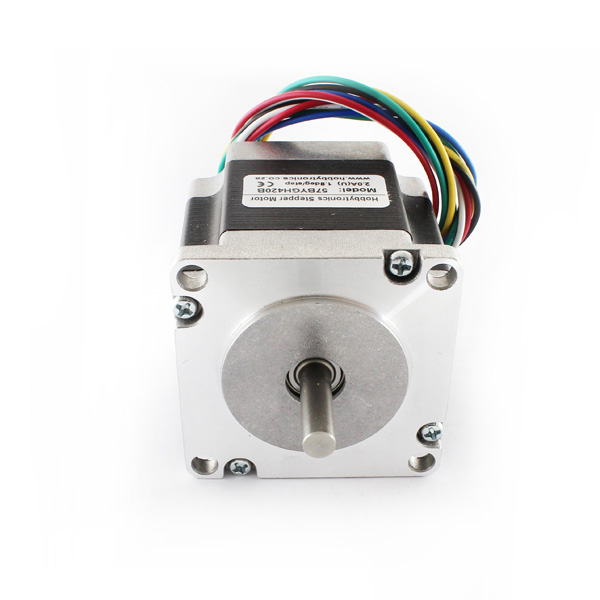

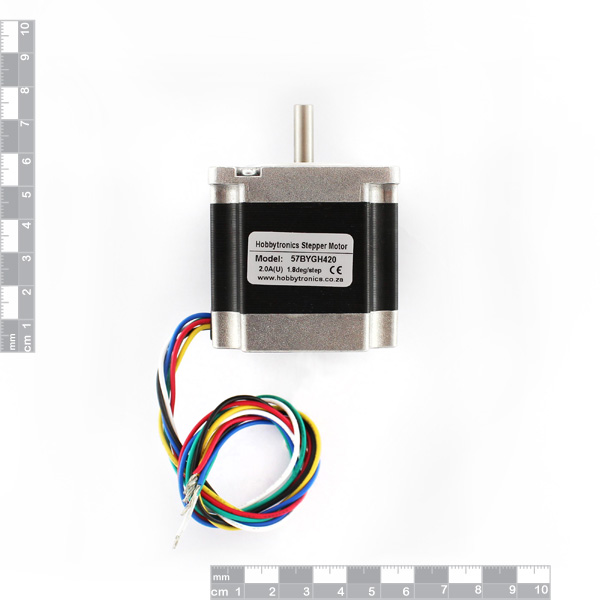

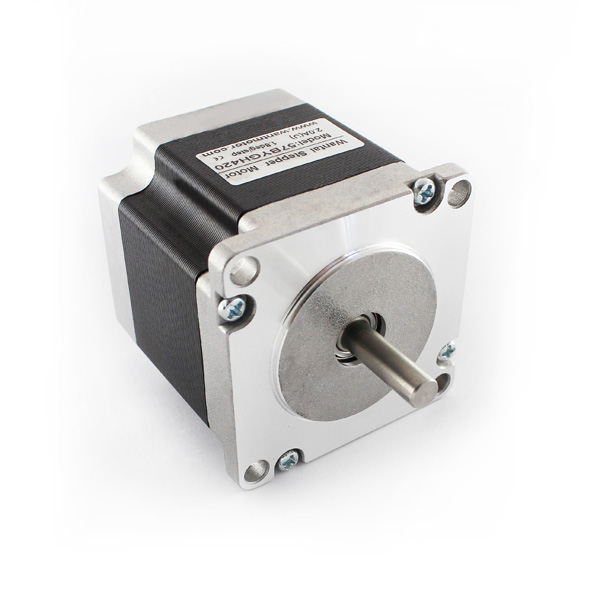

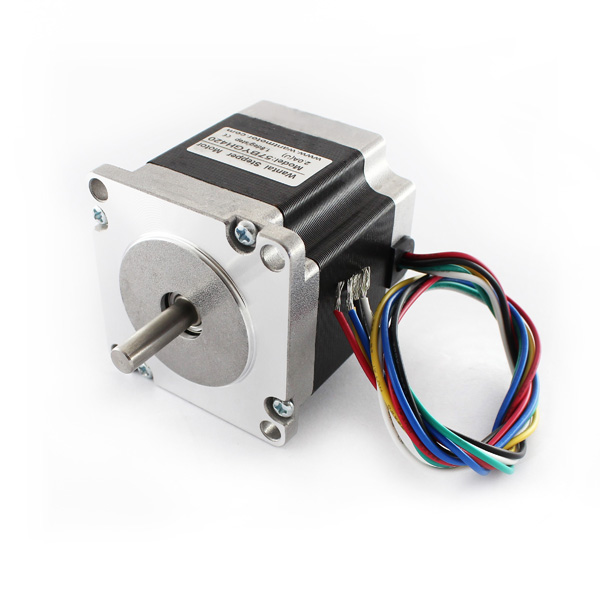

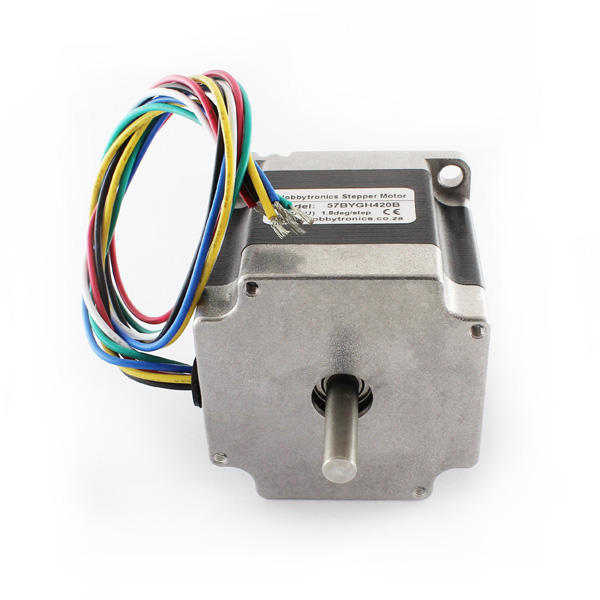

Nema 23 Stepper Motor, size 57x57mm

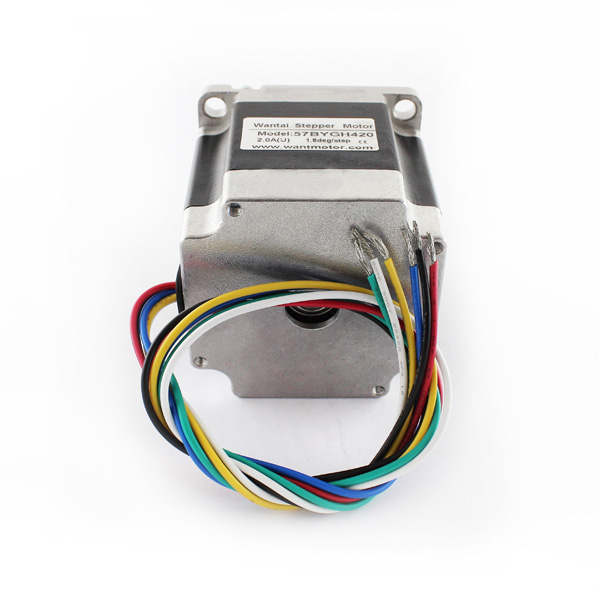

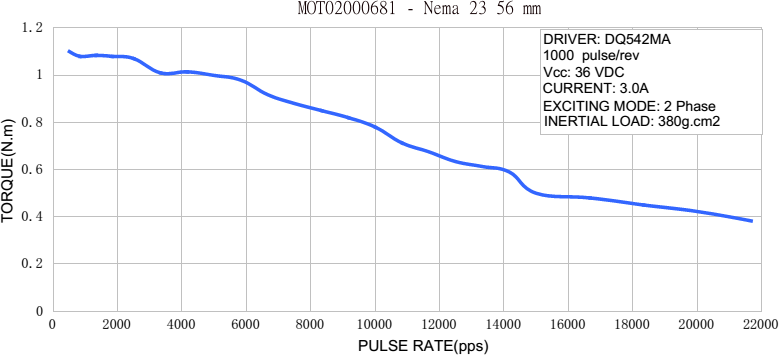

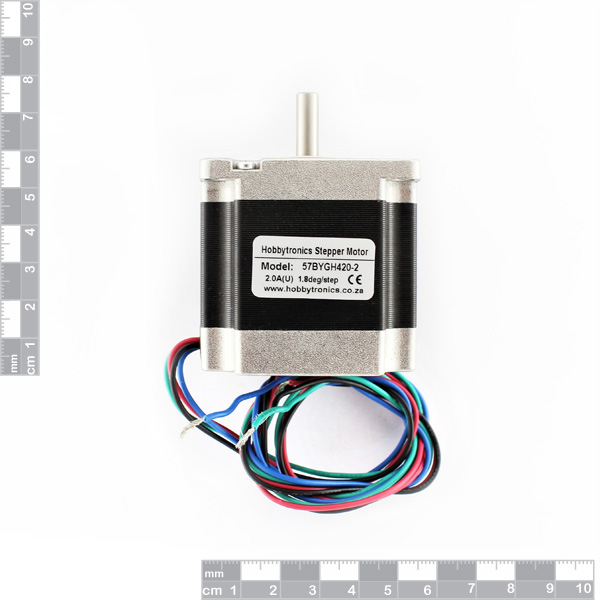

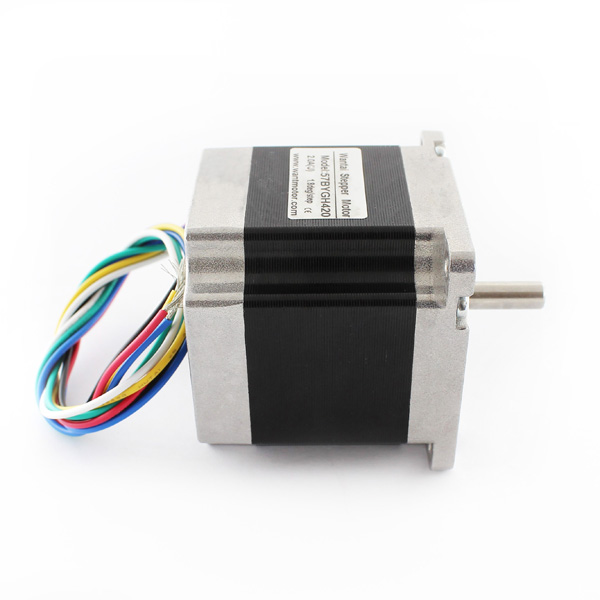

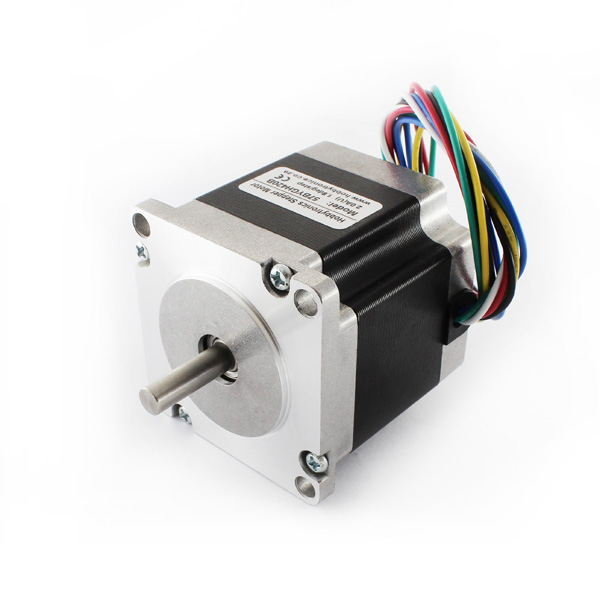

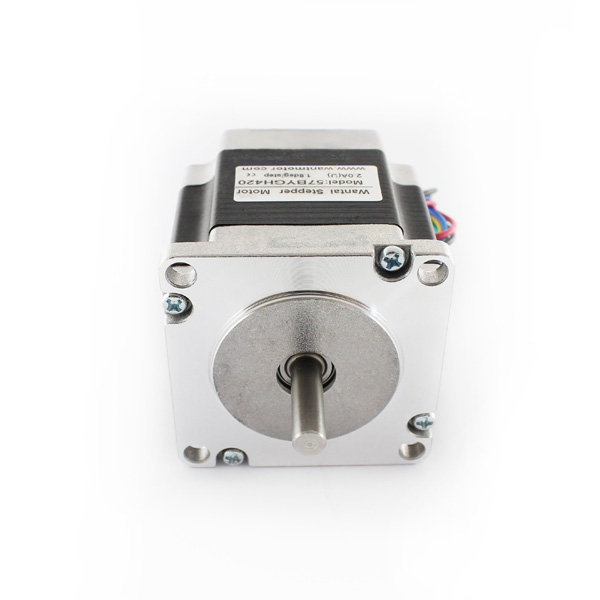

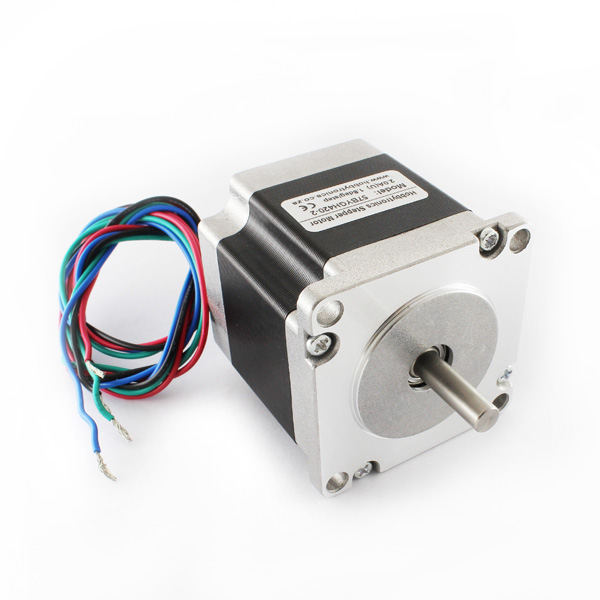

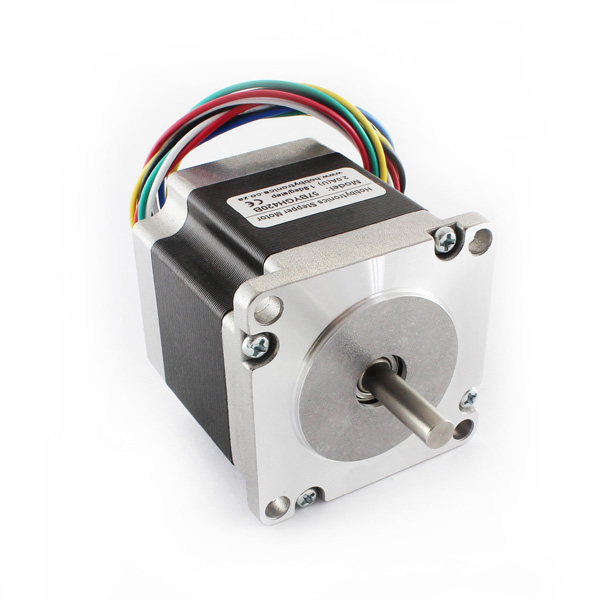

56mm 9kg/cm - 1.8 degree, 6 leads, single shaft

Features

  • Step Angle (degrees): 1.8
  • Motor Length (mm): 56
  • Rated Voltage (V): 3.6
  • Rated Current (A): 2
  • Phase Resistance (Ohms): 1.8
  • Phase inductance (mH): 2.5
  • Holding Torque (kg/cm): 9
  • Wires: 6
  • Rotor Inertia(g/cm3): 300
  • Detent Torque (g/cm): 400
  • Weight (kg): 0.7
SKU: MOT02000681
Availability: 250 in stock
R 370,50
:

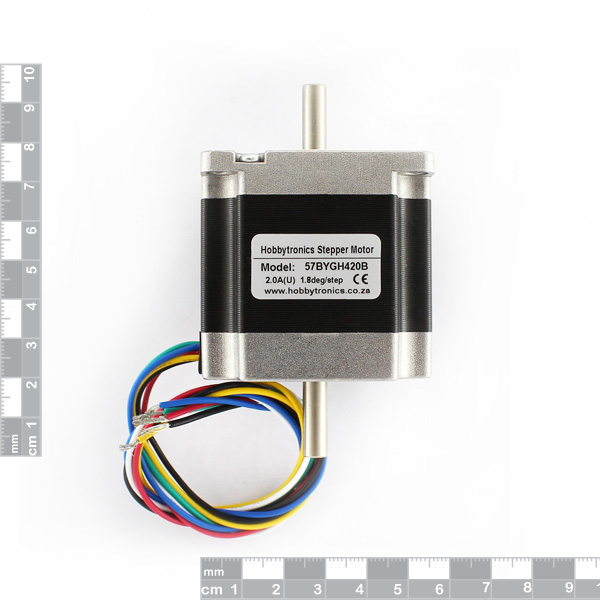

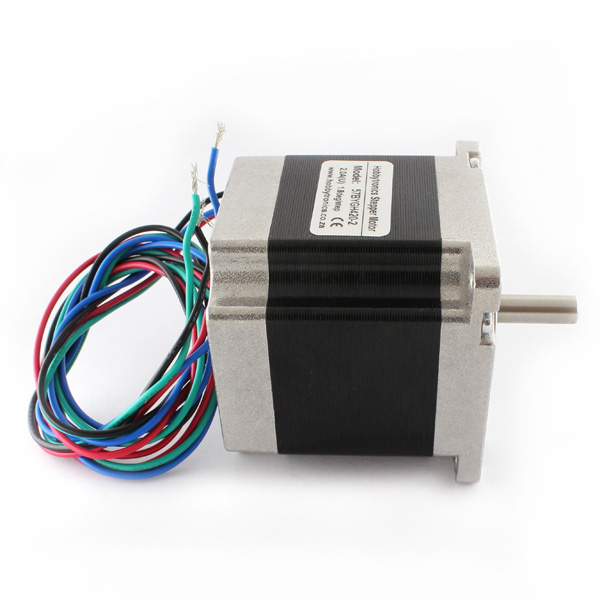

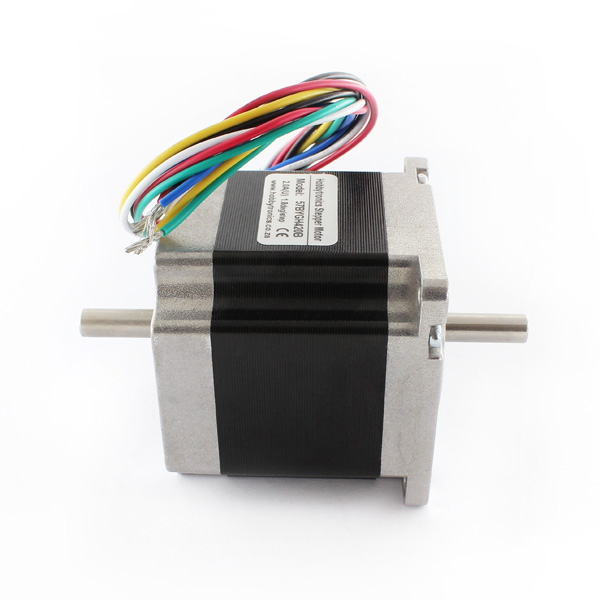

56mm 9kg/cm - 1.8 degree, 6 leads, dual shaft
SKU: MOT-01542
Availability: 20 in stock
R 381,90
:

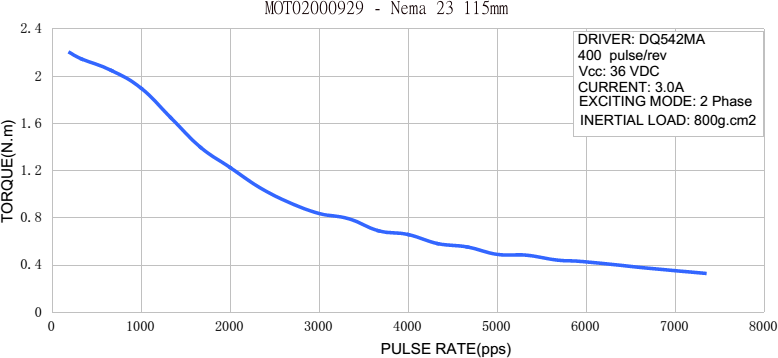

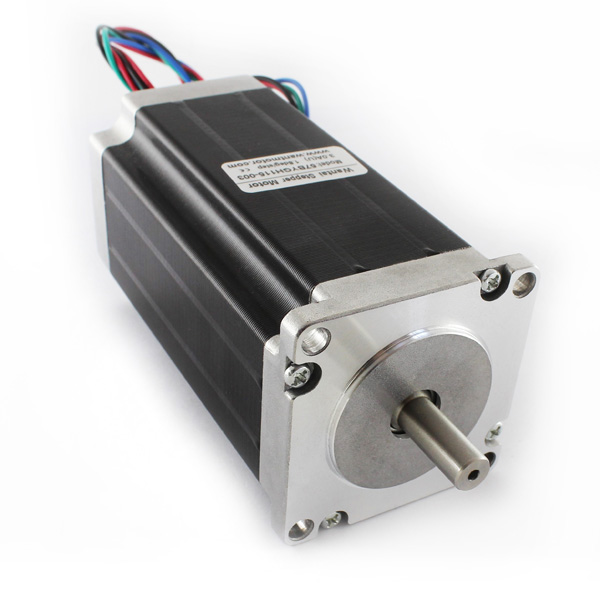

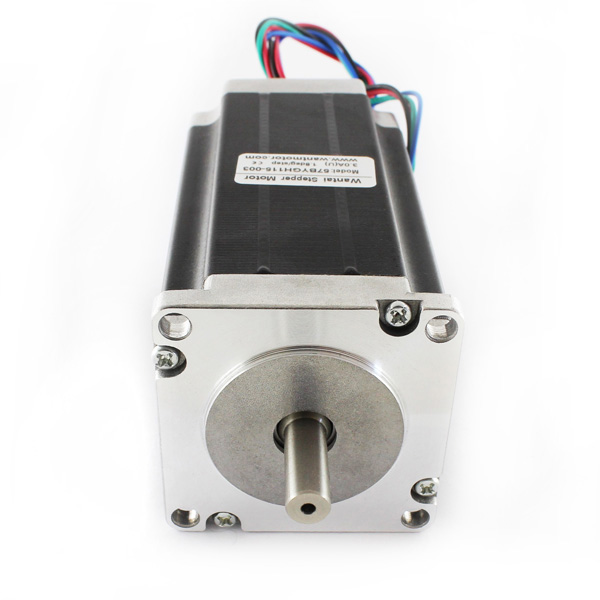

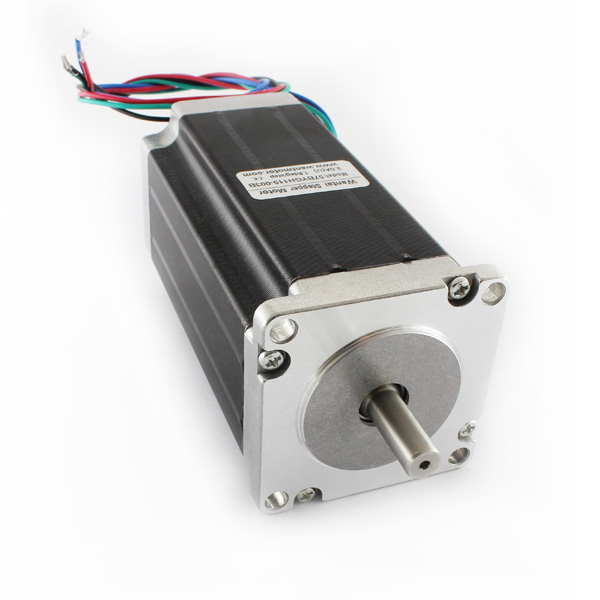

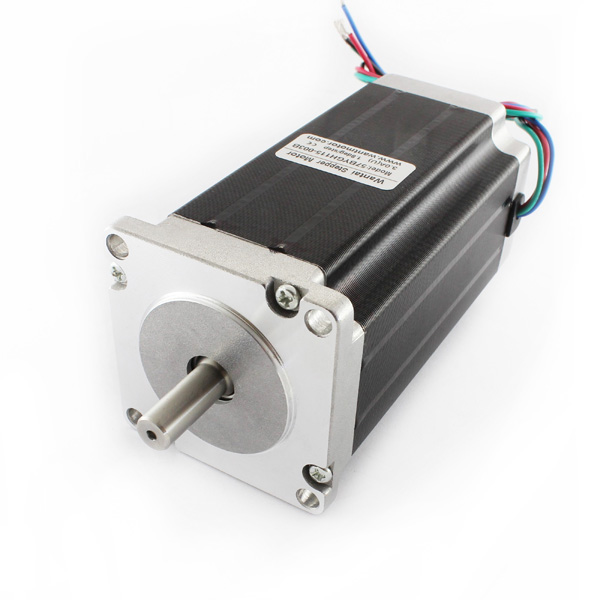

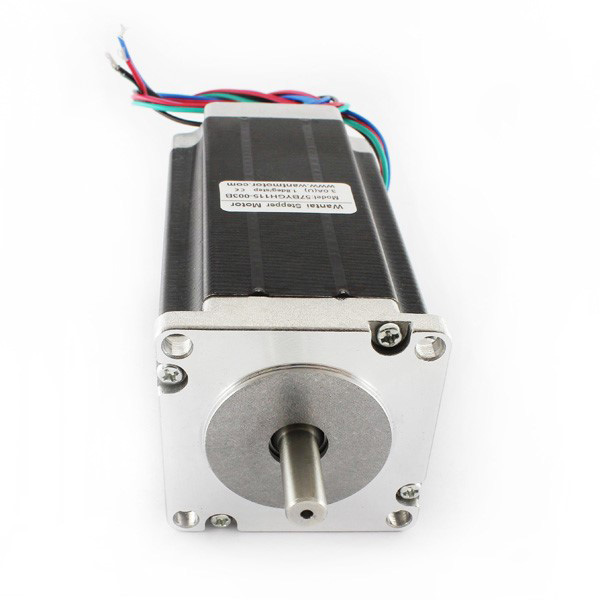

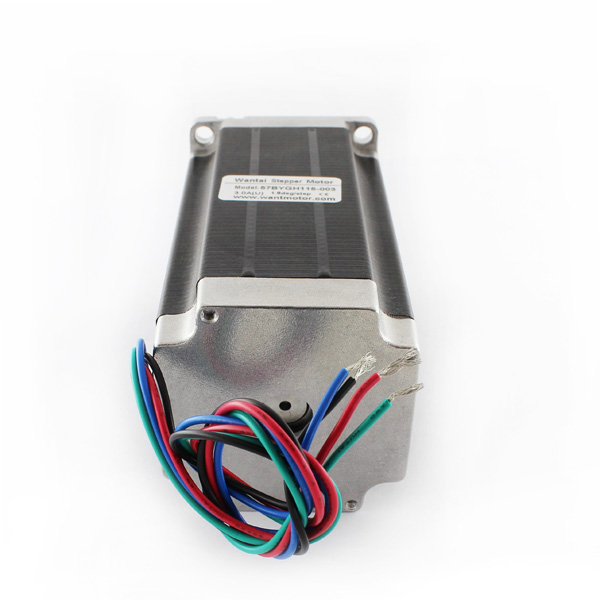

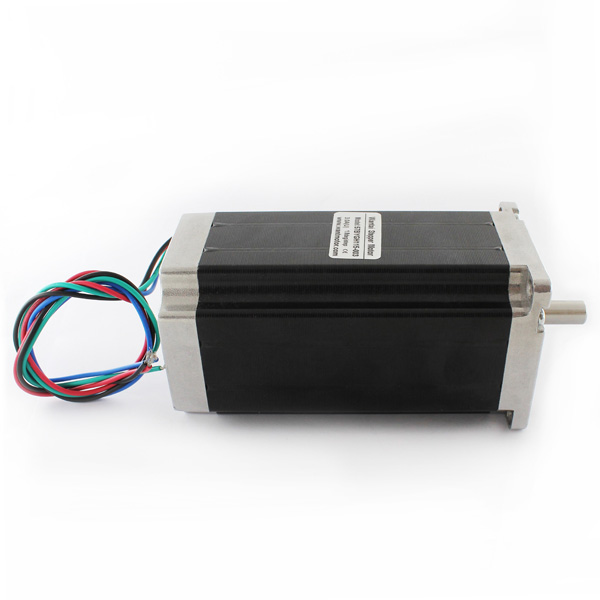

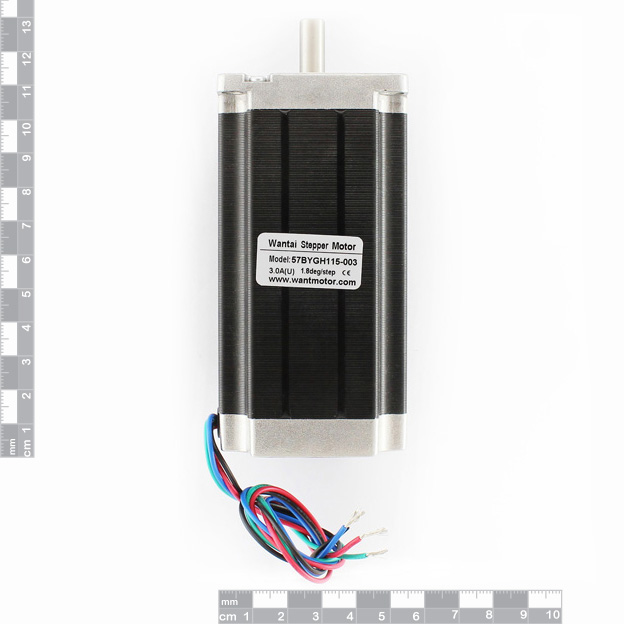

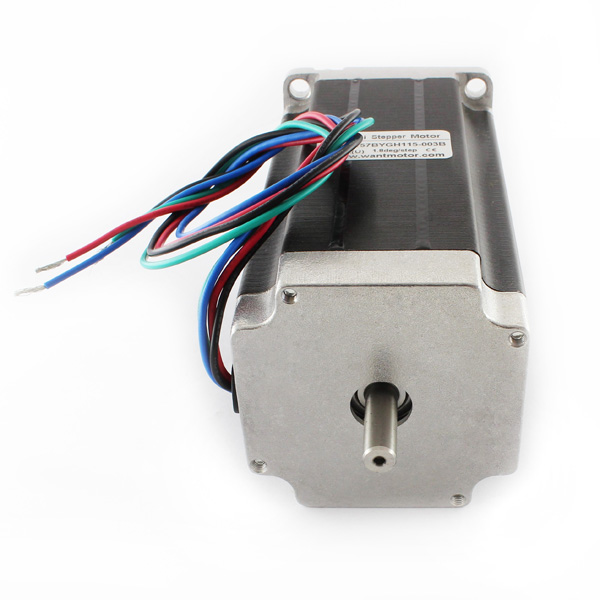

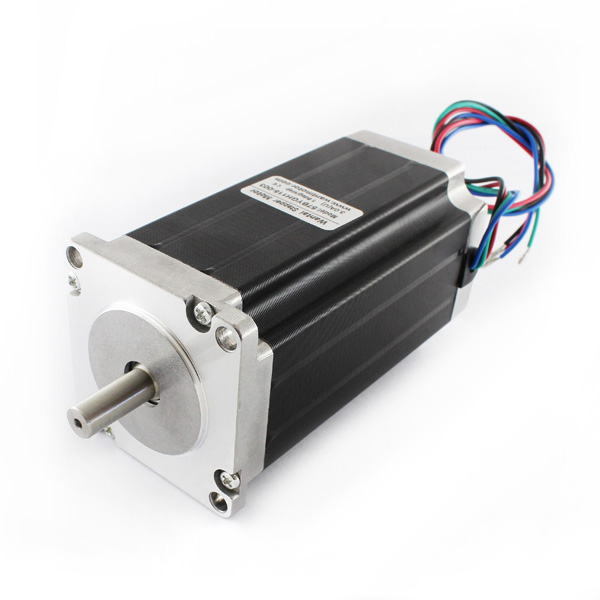

115mm 30kg/cm - 1.8 degree, 4 leads, single shaft

Features

  • Step Angle (degrees): 1.8
  • Motor Length (mm): 115
  • Rated Voltage (V): 6.3
  • Rated Current (A): 3
  • Phase Resistance (Ohms): 1.8
  • Phase inductance (mH): 2.1
  • Holding Torque (kg/cm): 30
  • Wires: 4
  • Rotor Inertia(g/cm3): 810
  • Detent Torque (g/cm): 890
  • Weight (kg): 1.55
SKU: MOT02000929
Availability: 49 in stock
R 699,96
:

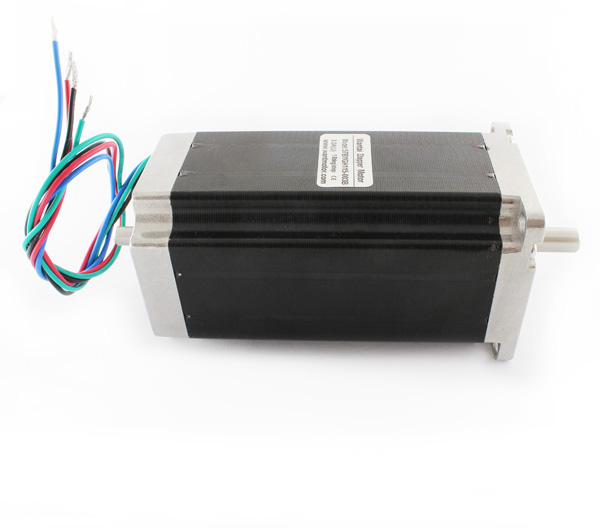

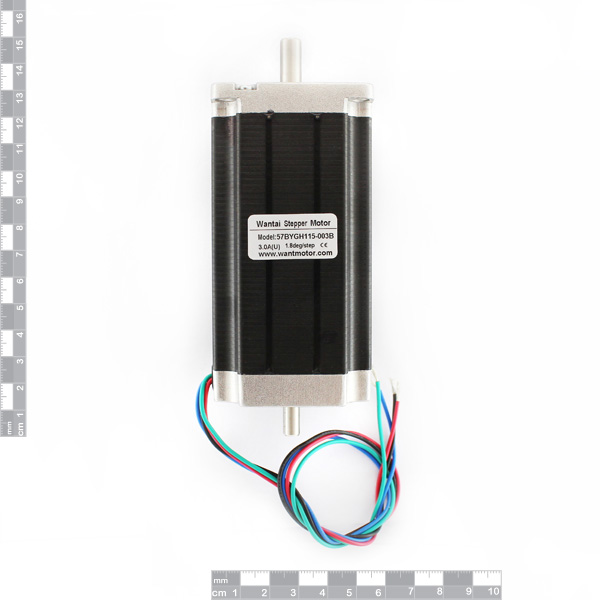

115mm 30kg/cm - 1.8 degree, 4 leads, dual shaft
SKU: MOT-01543
Availability: 20 in stock
R 711,36
:
