84x48 Nokia LCD Blue Backlight

The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended...

SKU: DIS04001191
Availability: 54 in stock
R 79,80
:

Description

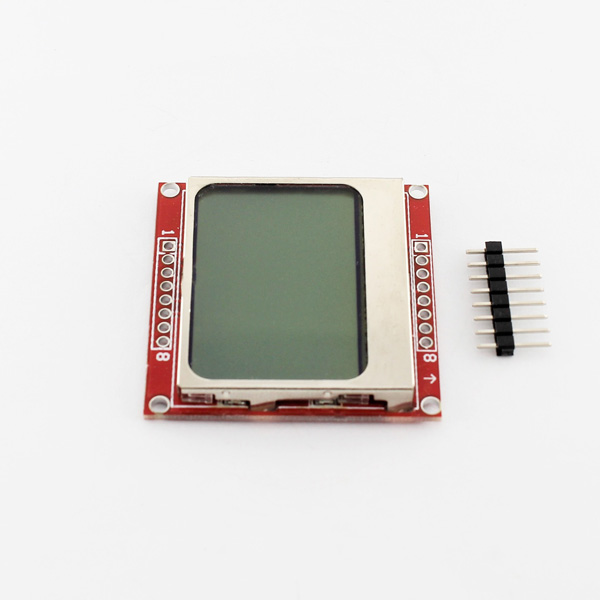

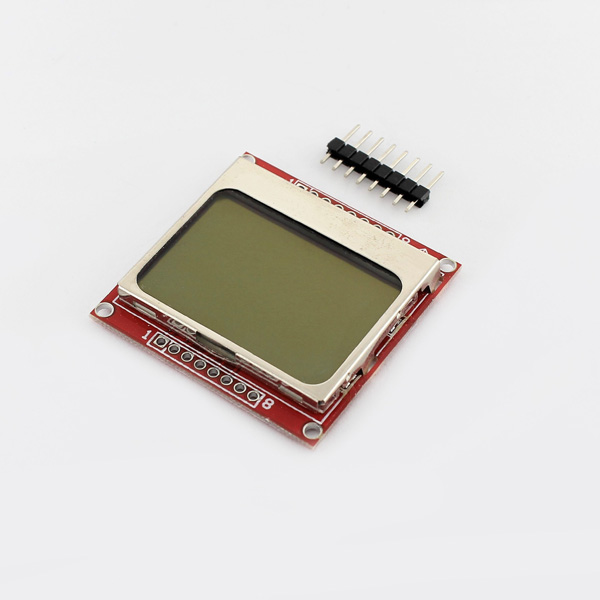

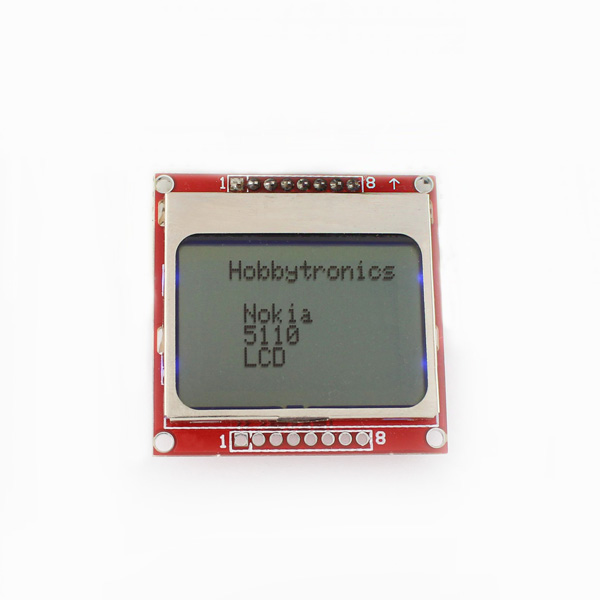

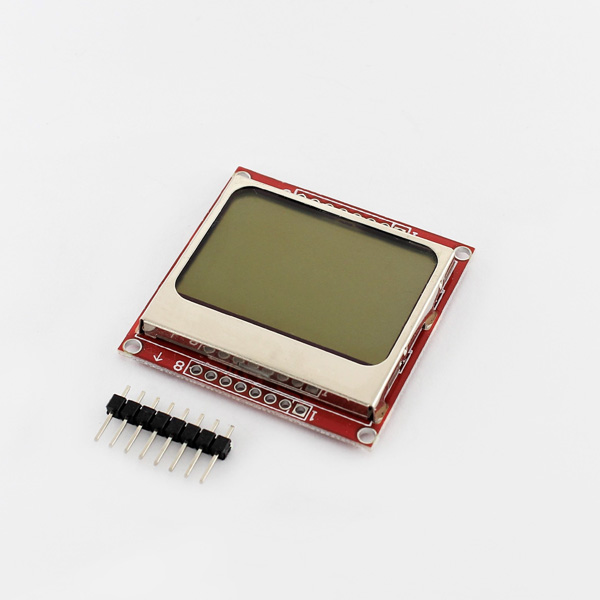

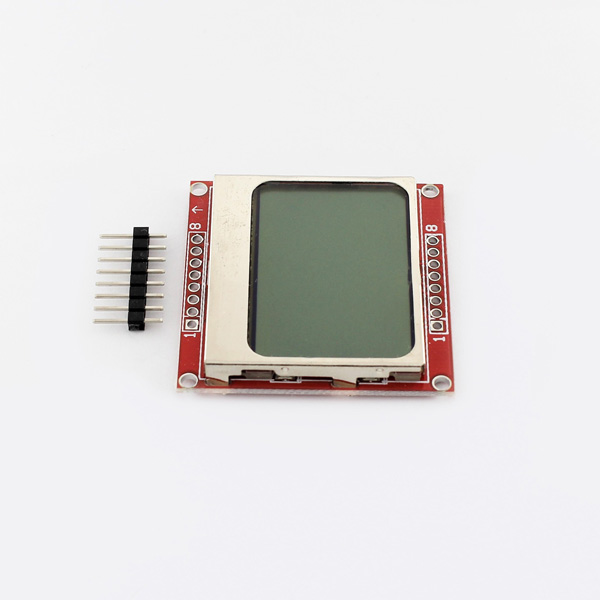

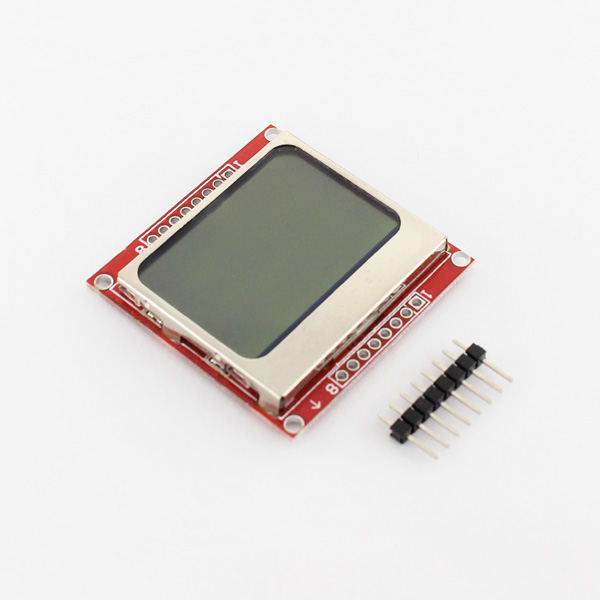

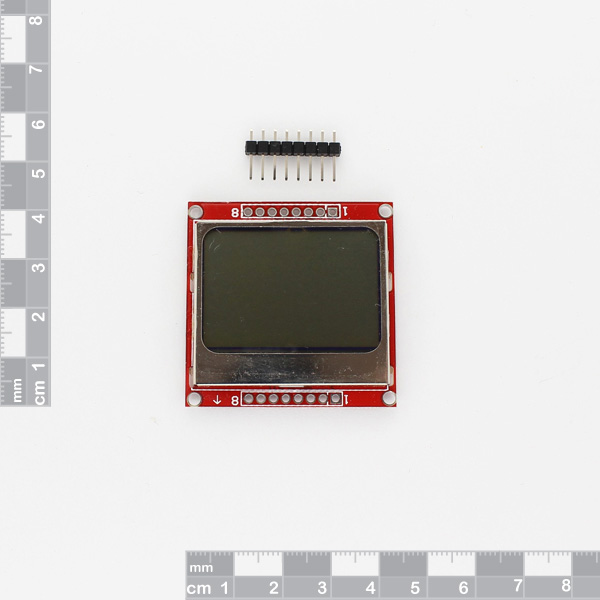

The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen. This one is mounted on an easy to solder PCB.

It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to micro controllers through a serial bus interface.

Note: There may be small blemishes on these screens as they are surplus.

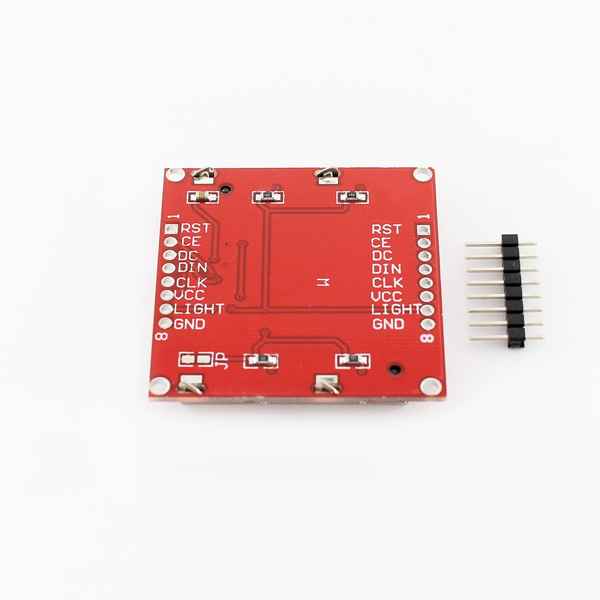

Note: do not use the pin-numbering but the labels on the pins to hook-up with the examples in the links below. Some of the pin numbering may be different.
