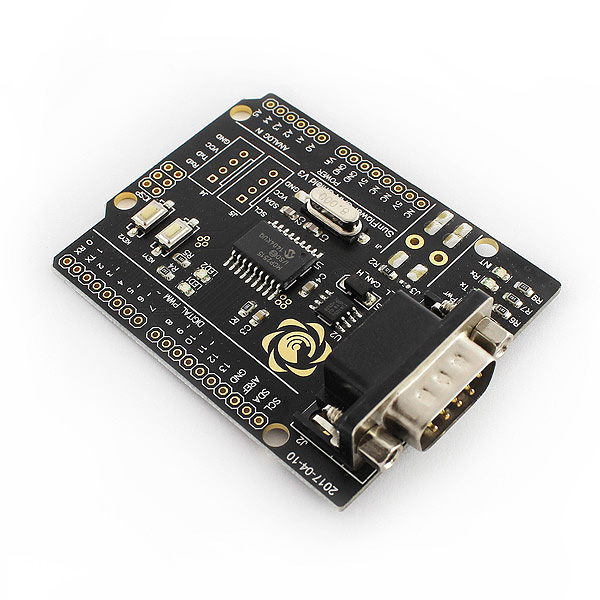

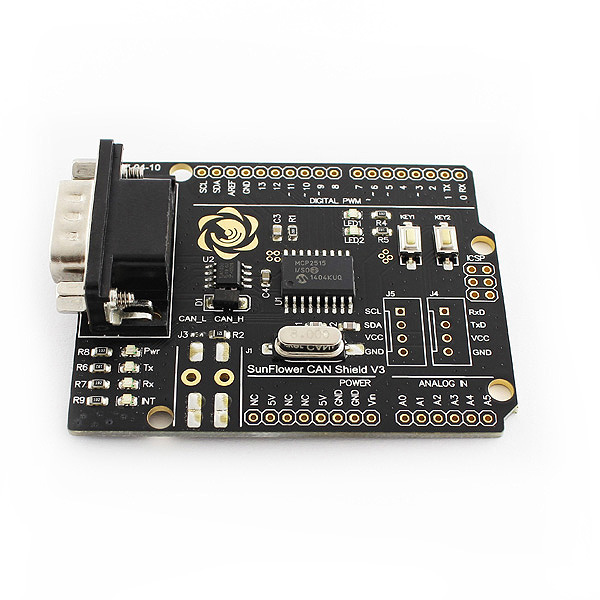

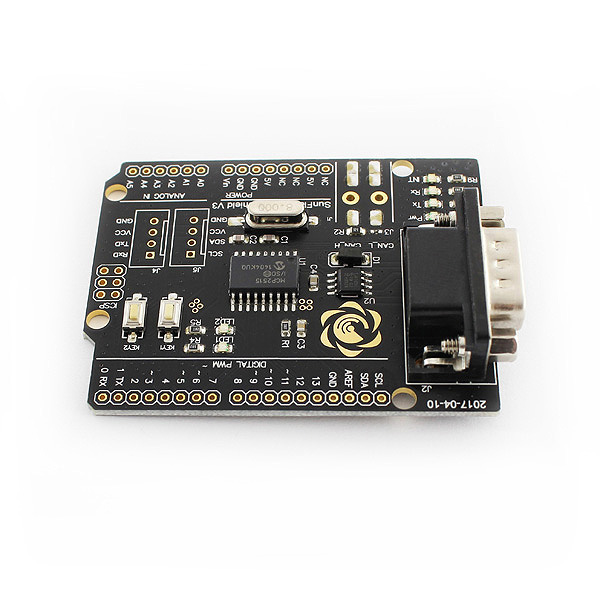

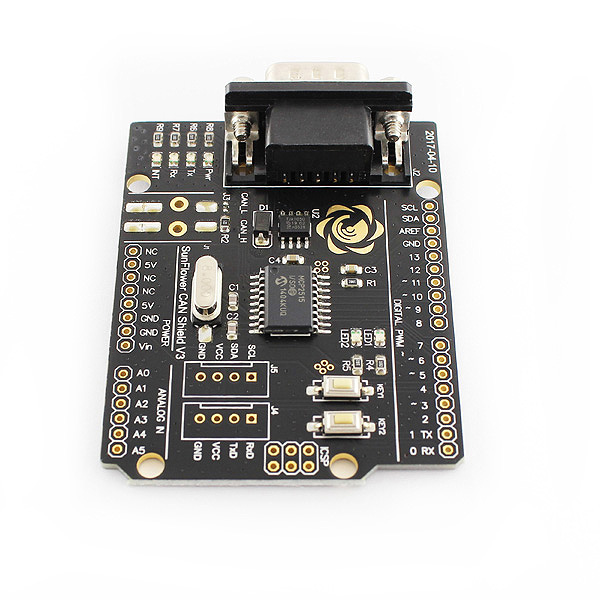

MCP2515 High Speed CAN Communicate Protocol Controller Bus Interface Shield

The CAN-BUS Shield provides your Arduino or compatible development board with CAN-BUS capabilities a...
SKU: COM-02017
Availability: 20 in stock
R220,80
:

Description

The CAN-BUS Shield provides your Arduino or compatible development board with CAN-BUS capabilities and gives you an interface for automotive projects. This shield allows you to not just receive and graph telemetry data from a vehicle but also allows for control of functions provided by you vehicle's ECU.  Some of the standard telemetry data that can by acquired includes, throttle position (air/fuel mixture), temperatures (coolant, oil, engine etc.) engine rpm vehicle speed and many more. This data can be polled and logged on a stand alone computer or converted to and in vehicle display system.

It uses the Microchip MCP2515 CAN controller. CAN connection is via a standard 9-way sub-D for use with OBD-II cable. Ideal for any automotive CAN application.

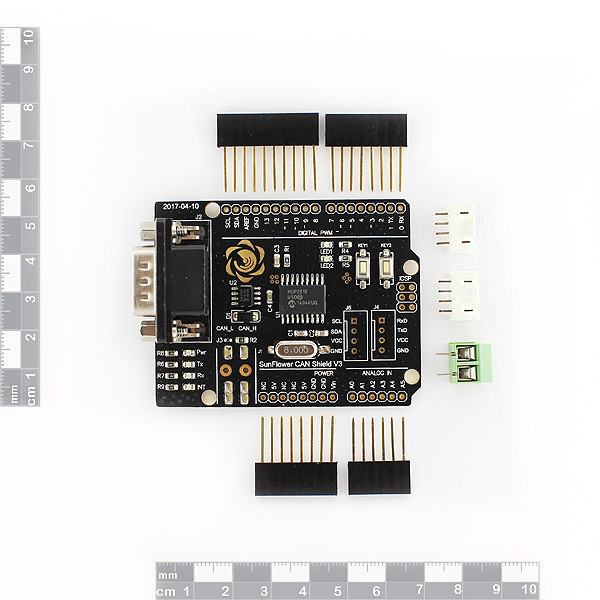

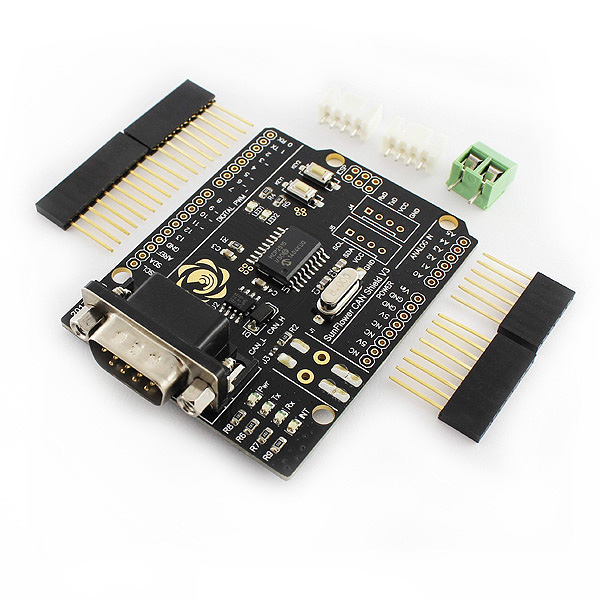

Note: some soldering required.

Features

  • CAN V2.0B implements at speeds of up to 1Mb / s
  • SPI interface up to 10 MHz
  • Standard (11 bits) and extended (29 bits) of data and remote frames
  • Two reception buffers with prioritized message storage

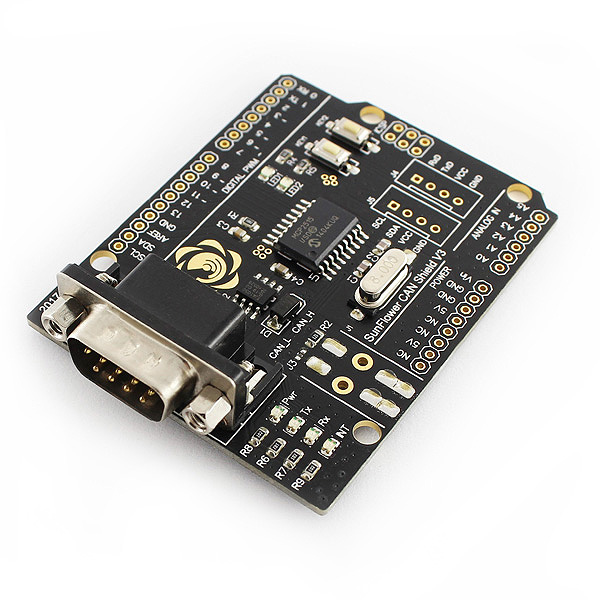

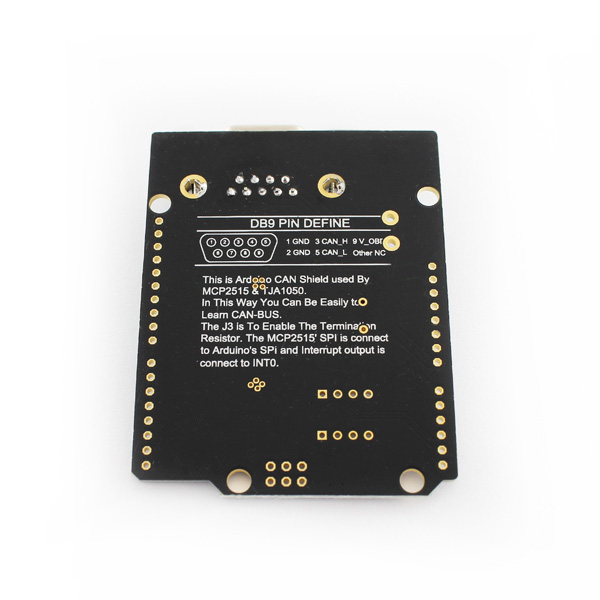

  • 9-pin industrial standard sub-D connector
  • LED indicators
