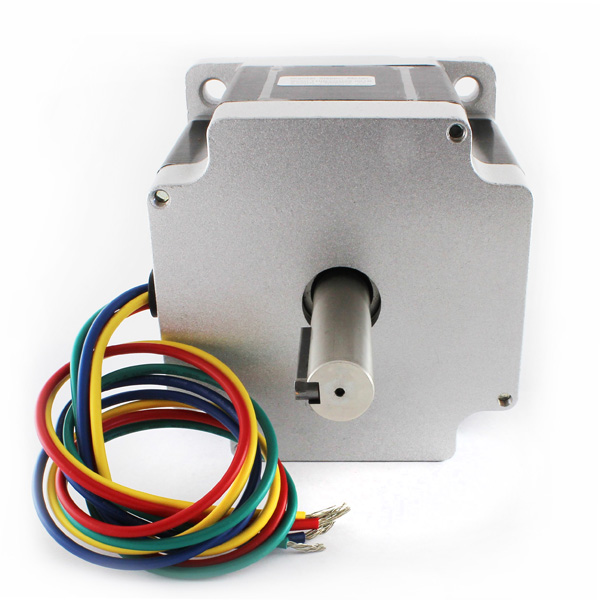

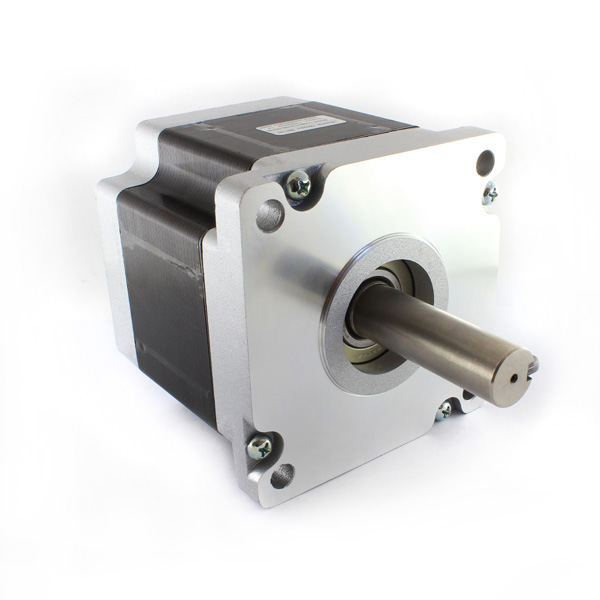

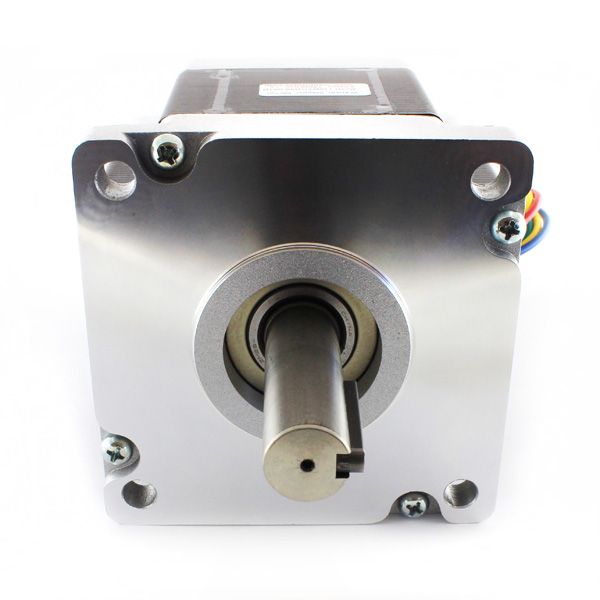

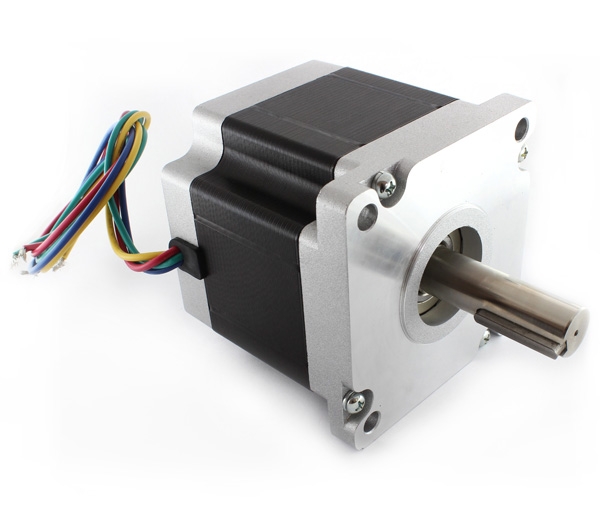

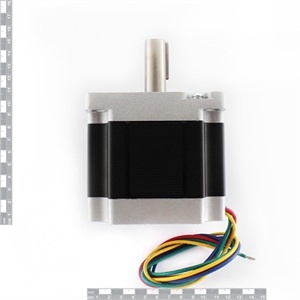

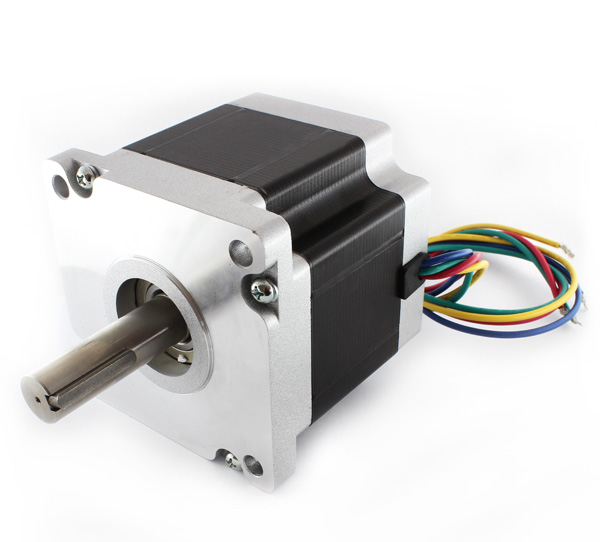

Nema 42 Stepper Motor

Nema 42 Stepper Motor

Description

Nema 42 Stepper Motor

Features

  • Recommended RPM between 100 - 300, can reach 500. High RPM does affect torque negatively as per torque diagrams.

Documents

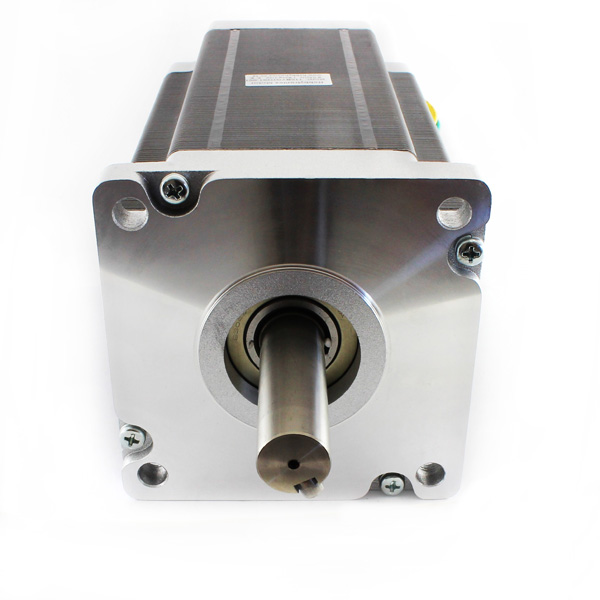

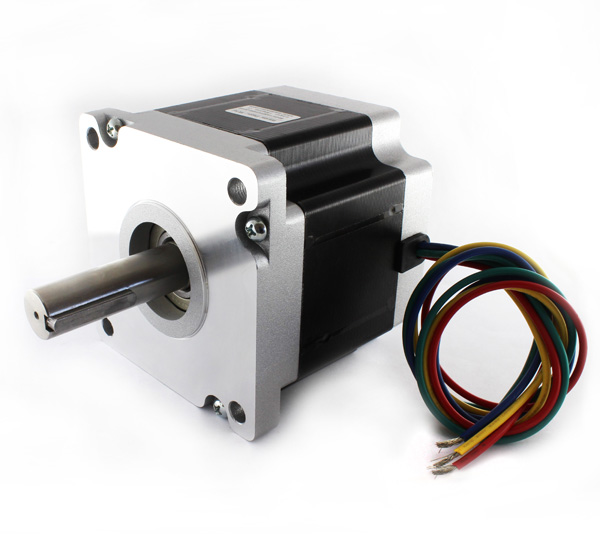

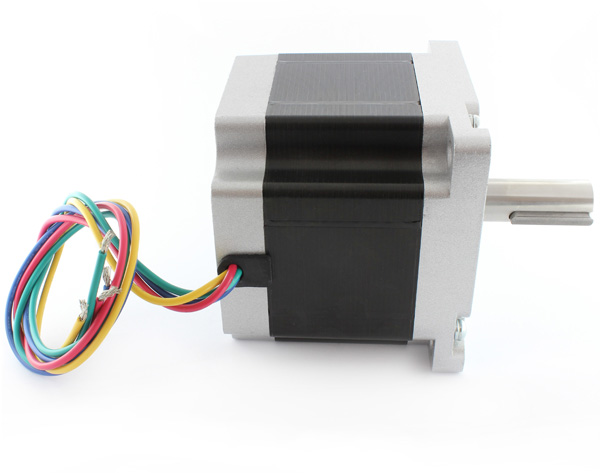

Picture of 99mm 125kg/cm - 1.8 degree, 4 leads, single shaft
99mm 125kg/cm - 1.8 degree, 4 leads, single shaft

Features

  • Step Angle (degrees): 1.8
  • Motor Length (mm): 99
  • Rated Voltage (V): 3.0
  • Rated Current (A): 6.0
  • Phase Resistance (Ohms): 0.5
  • Phase inductance (mH): 12
  • Holding Torque(kg/cm): 125

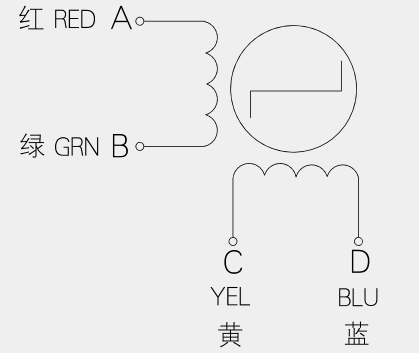

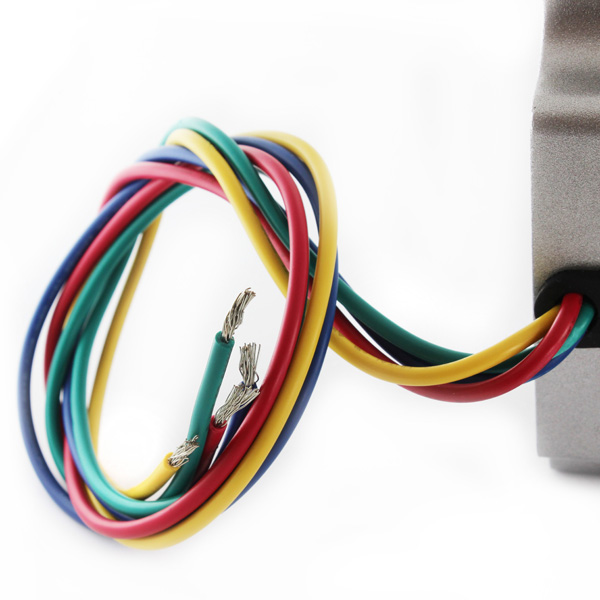

  • Wires: 4
  • Rotor Inertia(g/cm3): 5500
  • Detent Torque (kg/cm): 30
  • Weight (kg):5
  • Shaft size: 18mm (21mm keyed)
  • Shaft size (Dual): Front: 18mm (21mm keyed)
                        Rear: 16mm (19mm keyed)
SKU: 100733
Availability: 5 in stock
R3 503,00
:

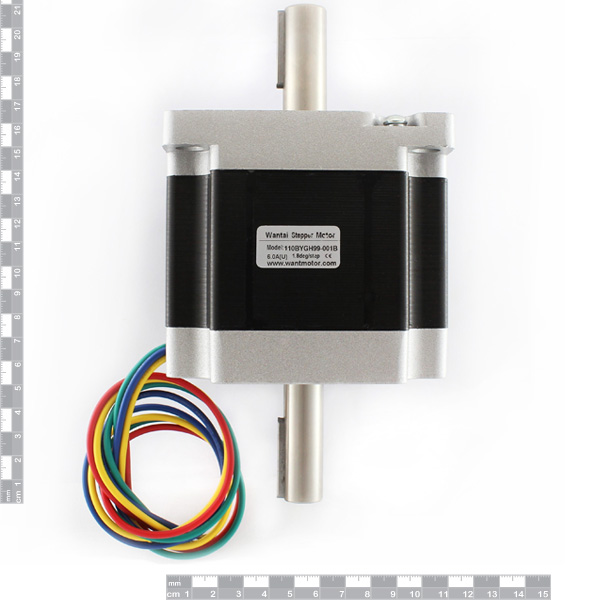

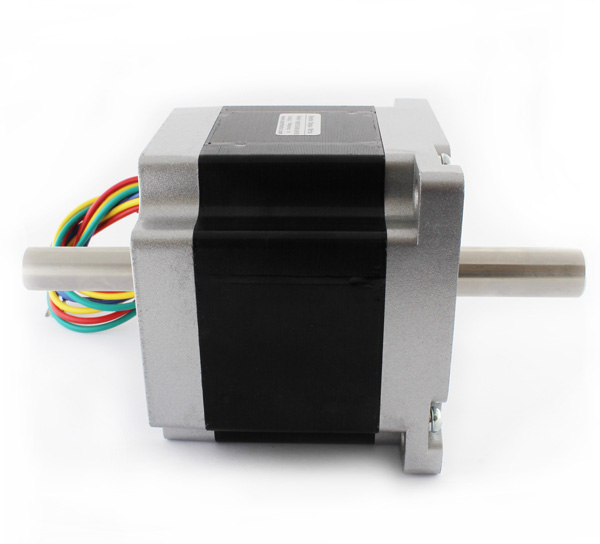

Picture of 99mm 125kg/cm - 1.8 degree, 4 leads, dual shaft
99mm 125kg/cm - 1.8 degree, 4 leads, dual shaft
SKU: 101404
Availability: 8 in stock
R3 286,00
:

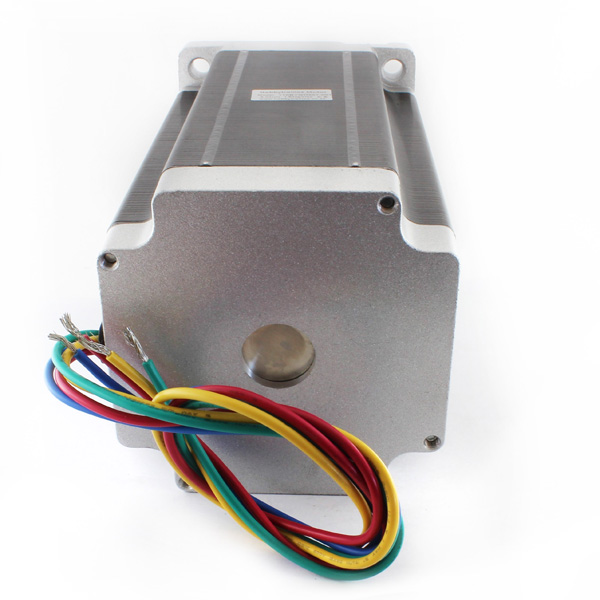

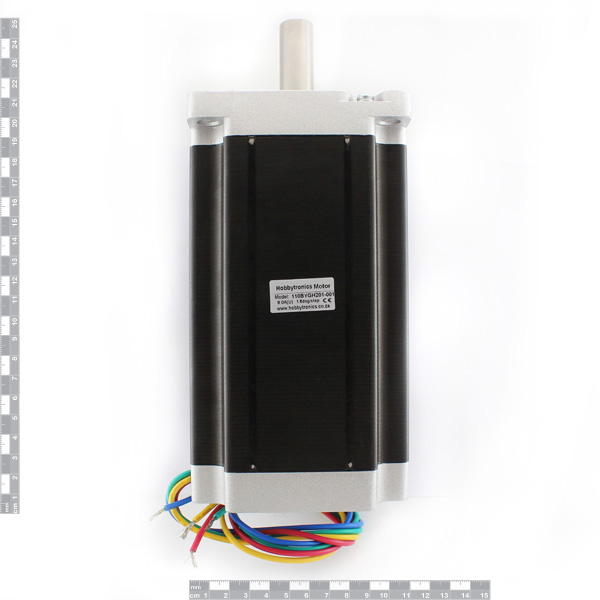

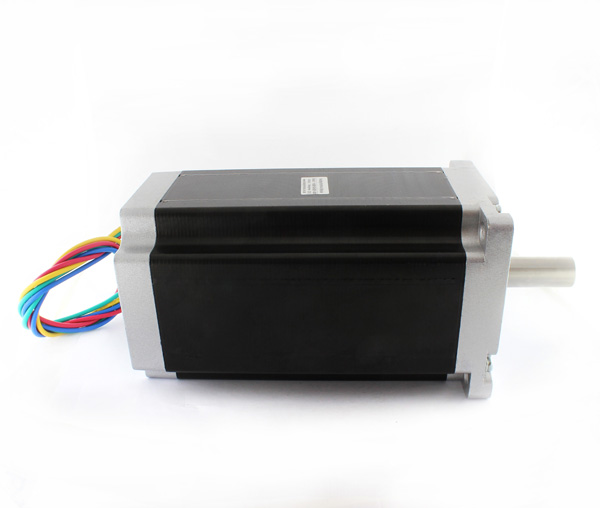

Picture of 201mm 300kg/cm - 1.8 degree, 4 leads, single shaft

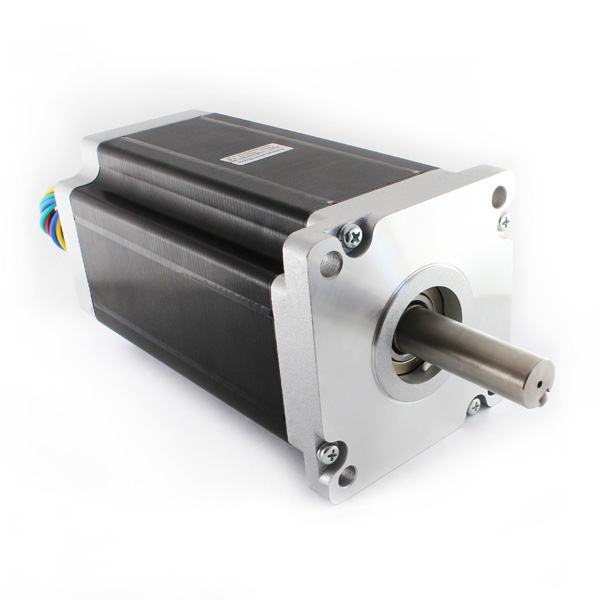

201mm 300kg/cm - 1.8 degree, 4 leads, single shaft

Features

  • Step Angle (degrees): 1.8
  • Motor Length (mm): 201
  • Rated Voltage (V): 5.36
  • Rated Current (A): 8.0
  • Phase Resistance (Ohms): 0.67
  • Phase inductance (mH): 12
  • Holding Torque(kg/cm): 300
  • Wires: 4
  • Rotor Inertia(g/cm3): 16200
  • Detent Torque (kg/cm): 75
  • Weight (kg): 11.7
SKU: 100732
Availability: 24 in stock
R5 843,00
:
201mm 300kg/cm - 1.8 degree, 4 leads, dual shaft
SKU: 101405
Availability: 4 in stock
R10 868,00
:
