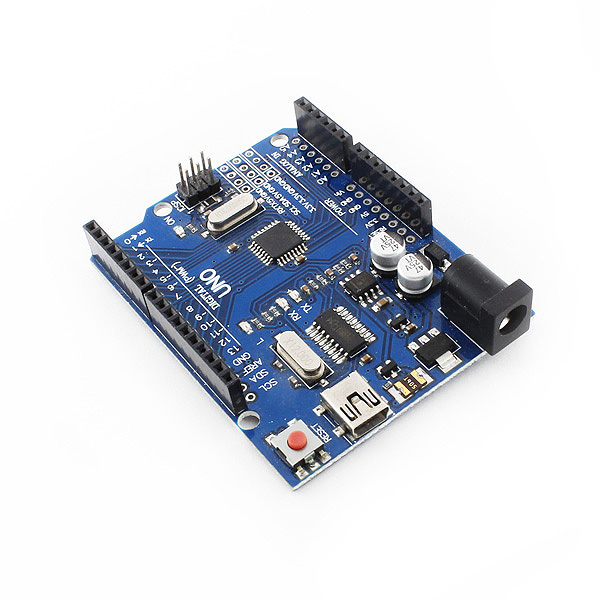

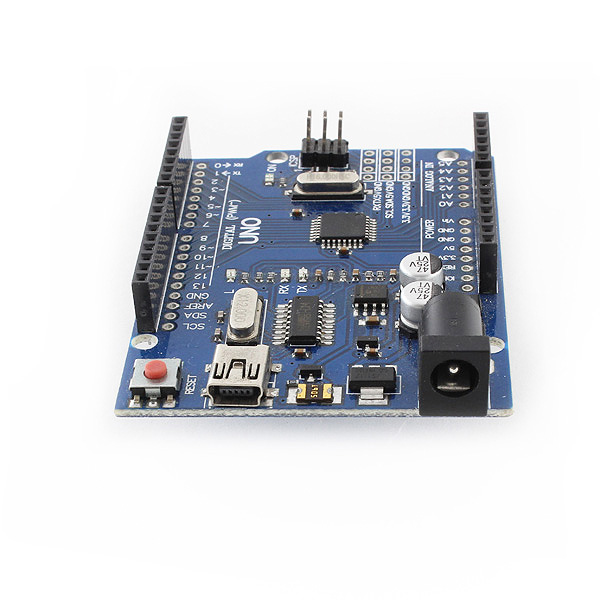

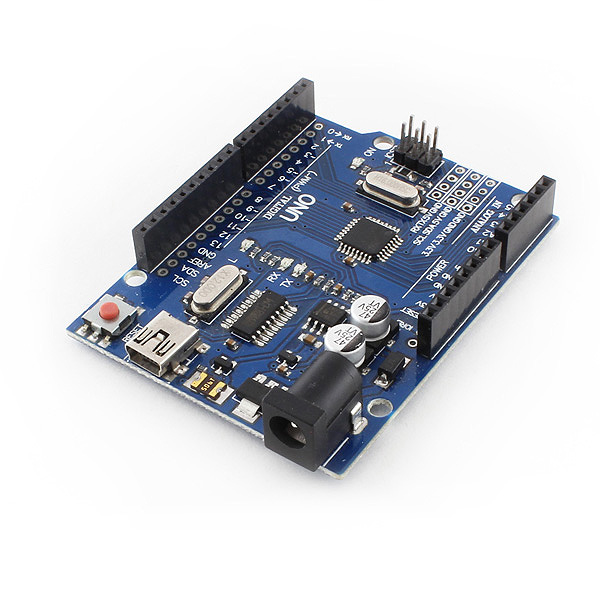

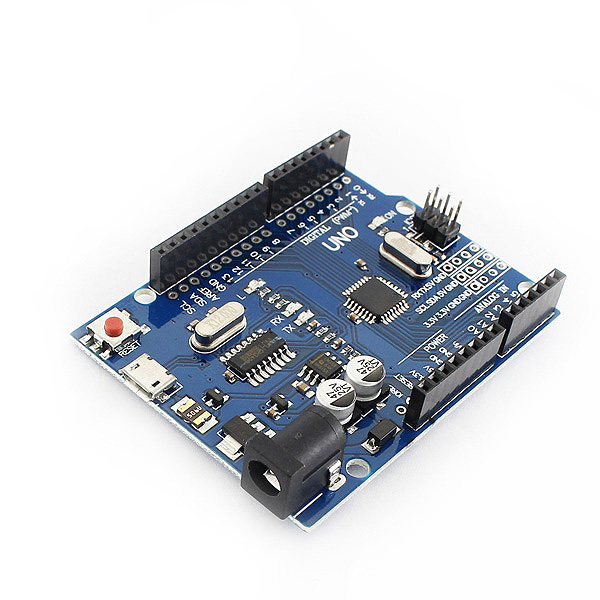

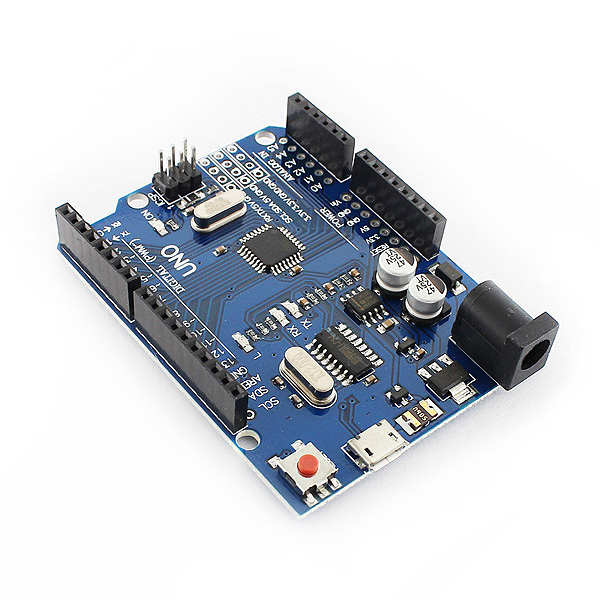

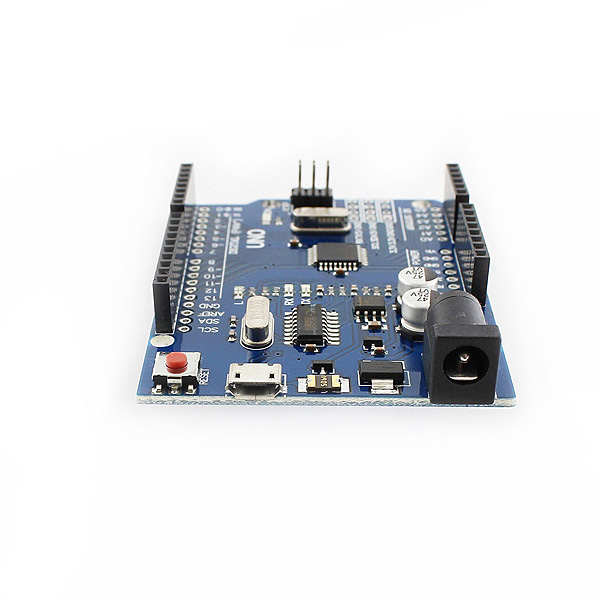

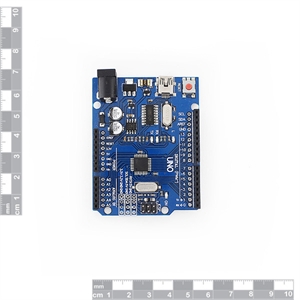

Arduino Uno - Clone Board

The Arduino Uno is a micro controller board based on the ATmega328 (data sheet). It has 14 digital i...

Description

The Arduino Uno is a micro controller board based on the ATmega328 (data sheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analogue inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the micro controller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter."Uno" means one in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.

Features

  • Micro controller ATmega328
  • Operating Voltage 5V
  • Input Voltage (recommended) 7-12V
  • Input Voltage (limits) 6-20V
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • Analogue Input Pins 6
  • DC Current per I/O Pin 40 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 32 KB of which 0.5 KB used by boot loader
  • SRAM 2 KB
  • EEPROM 1 KB
  • Clock Speed 16 MHz
