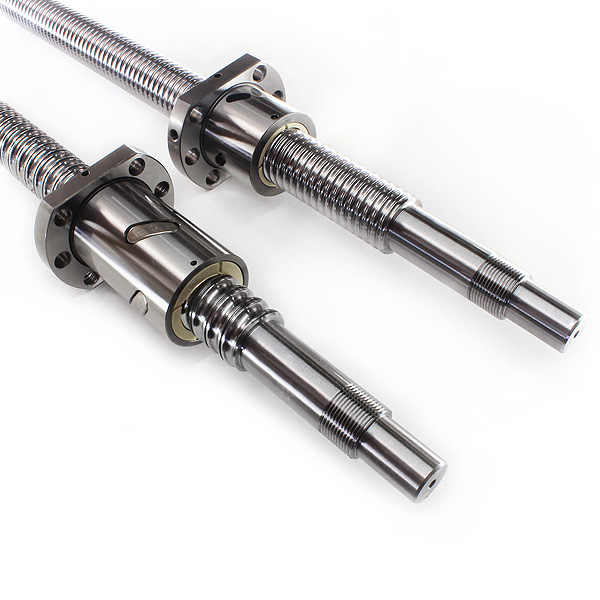

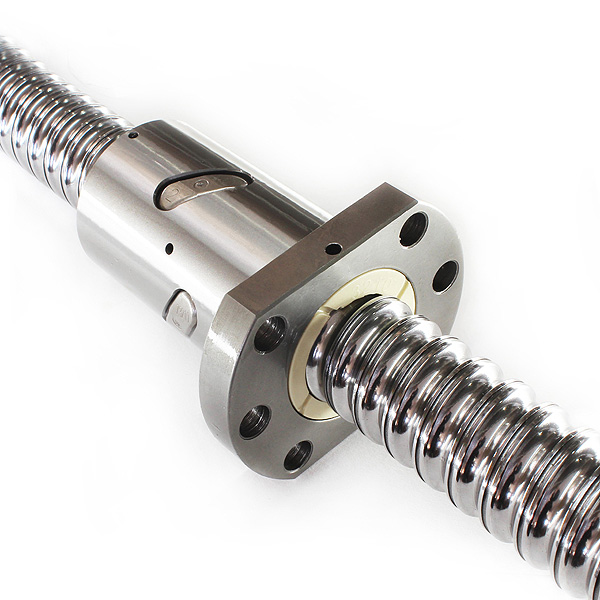

Ball Screw and Nut - SFU32XX

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with mini...

Description

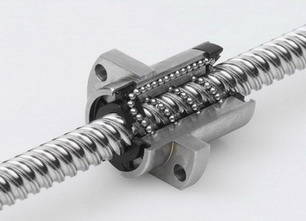

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. The ball assembly acts as the nut while the threaded shaft is the screw.

If a product is out of stock - please contact us for a proforma to reserve stock for next shipment. If you require a custom length please do contact us - due to weight, airfreight is expensive - sea freight can take 2 - 3 months.

Features

  • Ball Screw and Nut
  • See related products for end supports (if required)
  • See related products for ball nut housing bracket (if required)
  • Length indicated is total length of ball screw including machined ends.
  • Choose between 5mm and 10mm pitch
  • Material: GCR 15 Steel
  • Grade: C7
  • Hardness: HRC58-62
Picture of SFU3205-500mm
SFU3205-500mm
SKU: MAC-02519
Availability: 6 in stock
R983,25
:
Picture of SFU3205-750mm
SFU3205-750mm
SKU: MAC-02520
Availability: 6 in stock
R1 178,75
:
Picture of SFU3205-1000mm
SFU3205-1000mm
SKU: MAC-02135
Availability: 13 in stock
R1 380,00
:
Picture of SFU3205-1500mm
SFU3205-1500mm
SKU: MAC-02521
Availability: 3 in stock
R1 771,00
:
Picture of SFU3205-2000mm
SFU3205-2000mm
SKU: MAC-01636
Availability: 10 in stock
R2 116,00
:
Picture of SFU3205-2500mm
SFU3205-2500mm
SKU: MAC-02522
Availability: Out of stock
R2 121,75
:
Picture of SFU3205-3000mm
SFU3205-3000mm
SKU: MAC-01970
Availability: Out of stock
R0,00
:
Picture of SFU3210-500mm
SFU3210-500mm
SKU: MAC-02523
Availability: 10 in stock
R1 048,80
:
Picture of SFU3210-750mm
SFU3210-750mm
SKU: MAC-02524
Availability: 5 in stock
R1 245,45
:
Picture of SFU3210-1000mm
SFU3210-1000mm
SKU: MAC-02525
Availability: 15 in stock
R1 443,25
:
Picture of SFU3210-1500mm
SFU3210-1500mm
SKU: MAC-02526
Availability: 4 in stock
R1 866,45
:
Picture of SFU3210-2000mm
SFU3210-2000mm
SKU: MAC-01722
Availability: 8 in stock
R1 972,25
:
Picture of SFU3210-2500mm
SFU3210-2500mm
SKU: MAC-02527
Availability: Out of stock
R2 121,75
:
Picture of SFU3210-3000mm
SFU3210-3000mm
SKU: MAC-01638
Availability: Out of stock
R2 233,30
:
