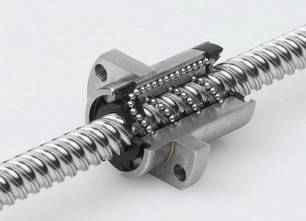

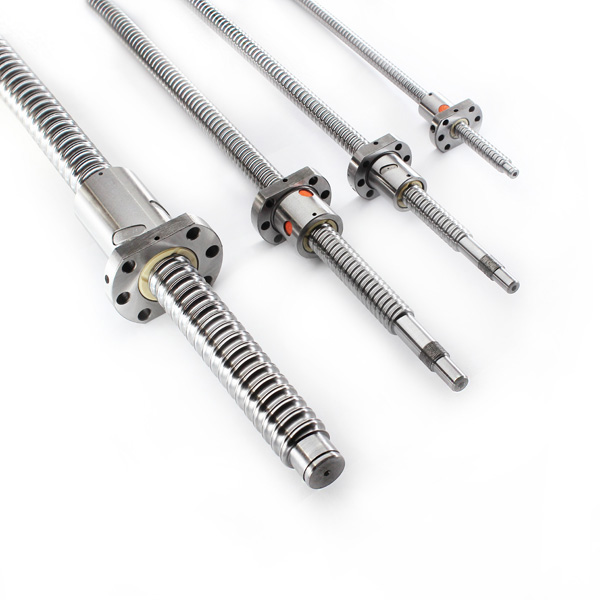

Ball Screw and Nut - SFU1204

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with mini...

Description

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. The ball assembly acts as the nut while the threaded shaft is the screw.

If a product is out of stock - please contact us for a proforma to reserve stock for next shipment. If you require a custom length please do contact us - due to weight, airfreight is expensive - sea freight can take 2 - 3 months.

Features

  • Ball Screw and Nut
  • End Machined:
    • Rear OD: 8mm
    • Front OD: 10mm
    • Coupling OD: 8mm
  • See related products for end supports (if required)
  • See related products for ball nut housing bracket (if required)
  • Length indicated is total length of ball screw including machined ends
  • Pitch: 4mm.
  • Material: GCR 15 Steel
  • Grade: C7
  • Hardness: HRC58-62

Documents

SFU1204-350mm
SKU: 101276
Availability: 31 in stock
R933,00
:
SFU1204-450mm
SKU: 101302
Availability: 14 in stock
R817,00
:
SFU1204-600mm
SKU: 101277
Availability: 3 in stock
R874,00
:
