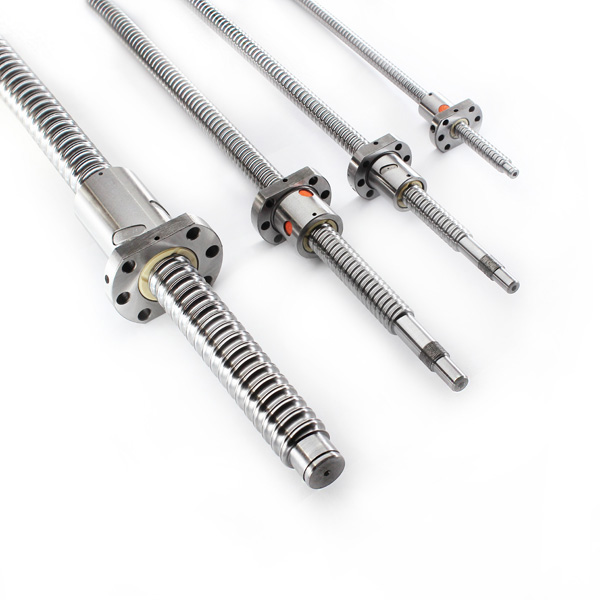

Ball Screw and Nut - SFU1605

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with mini...

Description

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. The ball assembly acts as the nut while the threaded shaft is the screw.

If a product is out of stock - please contact us for a proforma to reserve stock for next shipment. If you require a custom length please do contact us - due to weight, airfreight is expensive - sea freight can take 2 - 3 months.

Features

  • Ball Screw and Nut
  • End Machined:
    • Rear OD: 10mm
    • Front OD: 12mm
    • Coupling OD: 10mm
  • See related products for end supports (if required)
  • See related products for ball nut housing bracket (if required)
  • Length indicated is total length of ball screw including machined ends
  • Pitch: 5mm
  • Material: GCR 15 Steel
  • Grade: C7
  • Hardness: HRC58-62
SFU1605-550mm
SKU: 101281
Availability: Out of stock
R697,58
:
SFU1605-600mm
SKU: 101282
Availability: Out of stock
R715,20
:
SFU1605-650mm
SKU: 102150
Availability: Out of stock
R662,40
:
SFU1605-720mm
SKU: 101629
Availability: Out of stock
R753,95
:
SFU1605-1000mm
SKU: 101284
Availability: 10 in stock
R856,12
:
SFU1605-1500mm
SKU: 102170
Availability: 1 in stock
R1 046,37
:
SFU1605-2000mm
SKU: 102171
Availability: 1 in stock
R1 247,19
:
SFU1605-2500mm
SKU: 102172
Availability: Out of stock
R1 420,25
:
SFU1605-3000mm
SKU: 102173
Availability: Out of stock
R1 319,05
:
